Product Name:ANTI-LOCK BRAKING SYSTEM (ABS-ASR) TRAINER

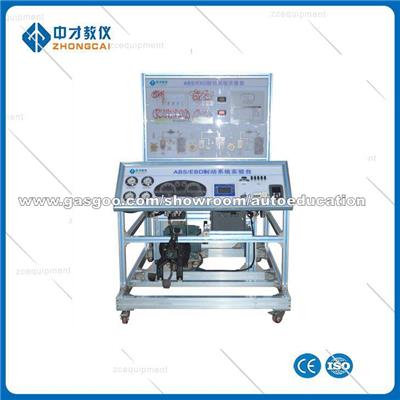

ANTI-LOCK BRAKING SYSTEM (ABS-ASR) TRAINER

Application

BMW

Product Description:

Features:

Trainer testing electrical and electronic systems used in modern automotive technology

This trainer is real equipment built with genuine automotive components.

Learning objectives :

-Analysis of the braking system in case of skidding on one or more wheels with out ABS control.

- Analysis of the braking system in case of skidding on one or more wheels with ABS control , in relation to : different friction loads , equal wheel

speeds, different wheel speeds

-Checking the condition of intervention of the solenoid valves of the electro-hydraulic set, in the following cases : smooth braking without,

skidding, braking with skidding of a front wheel and braking with skidding of a front wheel and braking with skidding of a rear wheel

- Analysis of the waveform of the driving signal on solenoid valves

- Analysis of the waveform of the signal coming from the sensors of angular velocity.

- Analysis of the pressures acting in tandem circuit and of the depressions in the brake booster .

- Analysis of irregularities, operational defects and faults :

Insertion of non destructive faults by means of microprocessor fault simulator

Fault-finding methods with traditional instruments or special instruments

Data gathering and reading, signaling of malfunction conditions, fault location by guided diagnosis and information upon operator's request,

given through diagnostic tester

MODULES

Braking circuit :

Brake pump with two circuits

Hand-operated brake

At least 2 pressure gauges for measuring the

relative pressure of pump deliveries 0 -25 bar

Vacuum brake booster

Vacuum electric pump and regulator for generating

depression

Pressure gauge for relative pressure

Brake fluid reservoir

Electro-hydraulic set with solenoid valves (ABS

modulator)

4 flywheels (disk wheel) with wheel speed sensor

4 digital displays (digital speed display for each

wheel)

4 hydraulic pressure gauges for checking the

braking pressures on front right and left wheel, rear

right and left wheel

Electric - electronic system :

key switch

Fuse

Warning light for faulty ABS (indicated problem)

ABS operational light (ABS ON)

Brake pedal switch

Switch for simulating the special road condition (dry asphalt, wet

asphalt and icy/snow)

Protection relay against over voltages

4 wheel speed sensor

Electronically-operated motor for controlling the speed of wheel-disk

unit provided with : manual set point , optoelectronic r.p.m. indicator ,

electronic friction adjustor

4 electronically-operated motors for controlling the speed of rear

2 and front 2 flywheels, provided with : manual set point (adjustable

switch of speed motor) , digital display of r.p.m indicator

4 sets of LEDs for checking the state of solenoid valves

Electronic control unit of ABS system

Included built in ABS tester/scanner

Provided test points that used to diagnose and troubleshoot the fault

circuits that caused by the fault simulation system

Power supply : 220 V / 50 Hz
