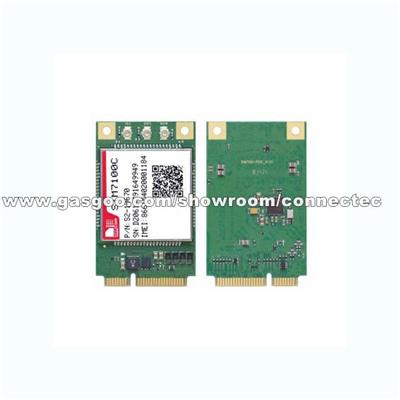

Product Name:SIMCOM SIM7100c-Pcie Lte 4g Module 4G LTE PCIE Module

SIMCOM SIM7100c-Pcie Lte 4g Module 4G LTE PCIE Module

Application

SIMCOM

Product Description:

The SIM7100C-PCIE is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS module solution in miniPCIE type which supports LTE up to 100Mbps for downlink and 50Mbps for uplink data transfer.It is combined with a SIM7100C module and a miniPCIE adapter board.

General features

• Four-Band TDD-LTE B38/B39/B40/B41
• Tri-Band FDD-LTE B1/B3/B7/B8
• Dual-Band TD-SCDMA B34/B39
• Dual-Band UMTS/HSDPA/HSPA+ B1/B8
• Tri-Band GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range : 3.3V~ 3.6V
• Operation temperature  : -30 to +80
• Dimension  : 50.95 X 31X 4.95 mm
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer

• TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps
• TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps
• TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps
• HSPA+ - Uplink up to 5.76 Mbps, - Downlink up to 42 Mbps
• UMTS - Uplink/Downlink up to 384Kbps
• EDGE Class  : - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
• CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call

Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
• USB Driver for Windows CE
• USB Driver for Linux /Android
• USB Driver for MAC
• RIL supporting for Android/Windows CE
• Automatic installation for windows
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device for reference
• Analog audio (Option)

Interfaces

• USB2.0
• UART
• SIM card
• MIC/Receiver (PCM)
• LED
