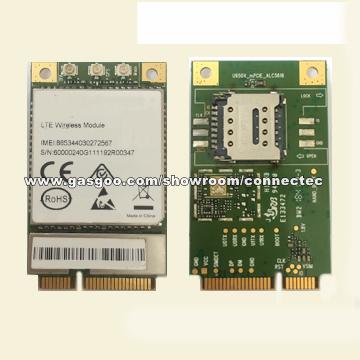

Product Name:CAT 4 LTE 4G Mini PCIE With SIM Card Holder

CAT 4 LTE 4G Mini PCIE With SIM Card Holder

Application

Connectec

Product Description:

4G with SIM card holder is a wireless module which is designed for the global market. It is a consumptive product; It can be designed in many kinds of applications which can work on LTE-FDD/UMTS/GSM/GPS/
GLONASS(Optional) network.
On LTE-FDD network, 4G with SIM card holder enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps. In the area where LTE service are not available, 4G with SIM card holder still enables reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
4G with SIM card holder provides SMS, MMS, Phonebook functions as well as high speed access, and also audio function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet,
Electric-book, MID, Vehicle equipment, etc.

General features:

• EDGE multi-slot class 33

• GPRS multi-slot class 33
• Compliant to GSM phase 2/2+

• Output power:
   - Class 3 (0.25W) for LTE/UMTS
   - Class 4 (2 W) for GSM 900
   - Class 1 (1 W) for GSM 1800

• Control via AT commands
  (3GPP TS27.005/3GPP TS27.007 )

• Supply voltage range 3.3V- 4.2V

• Low Power consumption
   - Sleep mode: 3mA
   - Power down: 16 μA

• Dimensions: 51.0×30.0×4.6mm

• Operation Temperature: -40°C to +85°C

• MSL : 3

Band Configuration

• LTE-FDD Band 1/3/5/7/8/20/28

• LTE-TDD Band 38/40

• UMTS Band 1/5/8

• GSM Band 3/8


Specifications for GNSS

• GPS frequency: 1575.42MHz

• At least support 44 channels

• Sensitivity
  - Acquisition: -158dBm
  - Tracking: -162dBm

• TTFF
  - Cold Start: 28s
  - Warm Start: 18s
  - Hot Start: 1s

Specifications for data

• Support Release 11 Category 4
