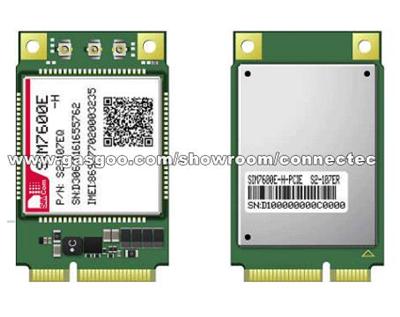

Product Name:SIMCOM SIM7600E-H CAT4 4G LTE-FDD/LTE TDD/HSPA+/UMTS/EDGE/GPRS/GSM PCIE Module

SIMCOM SIM7600E-H CAT4 4G LTE-FDD/LTE TDD/HSPA+/UMTS/EDGE/GPRS/GSM PCIE Module

Application

SIMCOM

Product Description:

SIM7600X-H-PCIE is a complete multi-band LTE-FDD/LTE TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in Mini PCIE type which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer.It is combined with a SIM7600X-H (LCC) module and a Mini PCIE adapter board.

Target market: EMEA/Korea/Thailand
SIM7600E-H-PCIE

• Support 4G LTE FDD Band B1/B3/B5/B7/B8/B20 and TDD Band B38/B40/B41
• Support 3G UMTS/HSPA+ B1/B5/B8
• Support 2G GSM/GPRS/EDGE B3/B8
• GSM/GPRS/EDGEB3/B8

General features

• Mini PCIE package
• Control Via AT Commands
• Supply voltage range: 3.0V~ 3.6V, 3.3V Typical
• Operation temperature: -40to +85
• Band/3/5/10/15/20MHz
• 3GPP E-UTRA Release 11
• Dimensions: 50.8*31*5.35mm
• Weight: 12.6g

Specifications for Data transfer

• LTE Downlink up to 150Mbps, Uplink up to 50Mbps
• HSPA+ Downlink up to 42Mbps, Uplink up to 5.76Mbps
• WCDMA Downlink/Uplink up to 384Kbps
• EDGE Downlink/Uplink up to 236.8Kbps
• GPRS Downlink/Uplink up to 85.6Kbps

Other features

• USB Driver for Microsoft Windows
• 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
• /HTTP/HTTPS/SMTP/SMTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
• eCall*

Interfaces

• USB2.0 with High speed up to 480Mbps
• UART
