Quick Details

• Place of Origin:

  Nanjing China

• Samples:

  Charge

• Sample Price:

  10USD

• Delivery Time:

  15days

• Packing:

  Put In The Carton And Make Transportation Safety Measures.

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  1000pieces/Month

• Export Ratio:

  21% - 30%

• OE Experience:

  No

Product Name:2KW Series Sealed Portable Charger

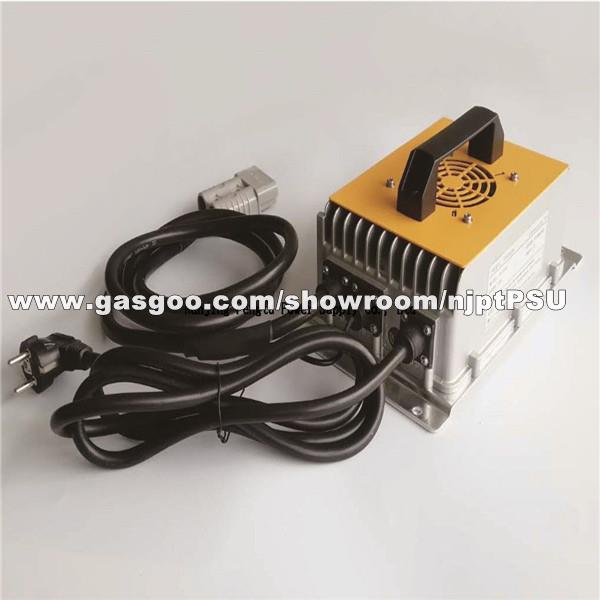

2KW Series Sealed Portable Charger

Application

Low Speed Electric Vehicle, Electric Motorcycle, Electric Tricycle, Forklift, Tourist Vehicle, Golf Car.

Product Description:

OEM No/Model: PA2K0M48FB30
  Product introduction and application areas
2KW Series Sealed Portable charger.The chargers are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters
. Ac input voltage range: 180-260VAC;45-65HZ
. AC max input current: 12A@220VAC
. Power factor: 0.98
. Noise: 55dB
. Protection grade: IP67
.Working temperature:-30~55
.Storage temperature:-40~95
Product specifications
.Dimensions:282*168*133mm
. Net weight: 4.5kg
Optional advanced configuration
.Can be with CAN bus;
.Optional low pressure auxiliary 12v;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Can add CC, CP to meet the charging needs of various occasions;
.Optional national standard, European standard charging pile communication protocol.
Multiple protection
.Output over current protection        .Input over voltage protection
.Output over voltage protection        .Input under voltage protection
.Output short circuit protection        .Over temperature protection
.Output no-load protection            .Fully charge automatic shutdown
.Output reverse connection protection   .CAN failure protection

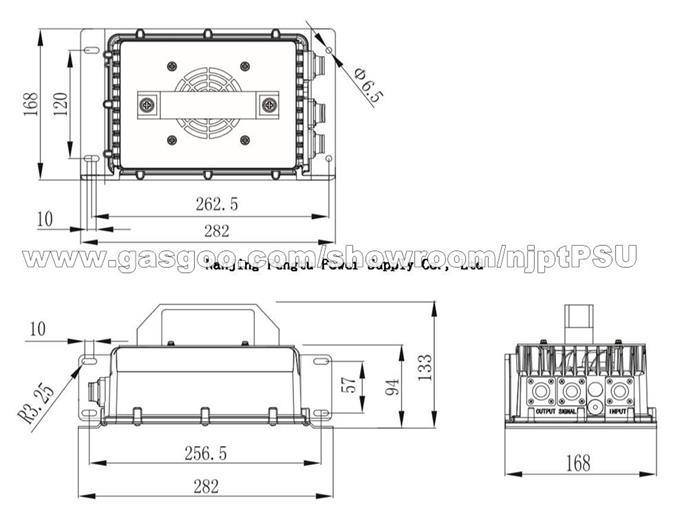

Mechanical Size&Model selection

Item	Battery Rated Voltage	Max Output Voltage	Max output current
PA2K0M24FB50	24V	34V	50A
PA2K0M48FB30	48V	68V	30A
PA2K0M60FB25	60V	85V	25A
PA2K0M60FB30	60V	85V	30A
PA2K0M72FB50	72V	102V	25A
PA2K0M96FB20	96V	136V	20A

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage.

Nanjing Pengtu Power Supply Co.,Ltd is a high-tech enterprise specializing in the development,design,production,sales and service of chargers,module power supplies and power modules.The company was incorporated in 2007 and is located at No.381,Pugang Street,Jiangning District,Nanjing,China. The ...[Read More]

Company Profile:

• Main Product:

  Ev Chargers

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania
