Quick Details

• Place of Origin:

  Nanjing China

• Samples:

  Charge

• Sample Price:

  10USD

• Delivery Time:

  15days

• Packing:

  Put In The Carton And Make Transportation Safety Measures.

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  1000pieces/Month

• Export Ratio:

  21% - 30%

• OE Experience:

  No

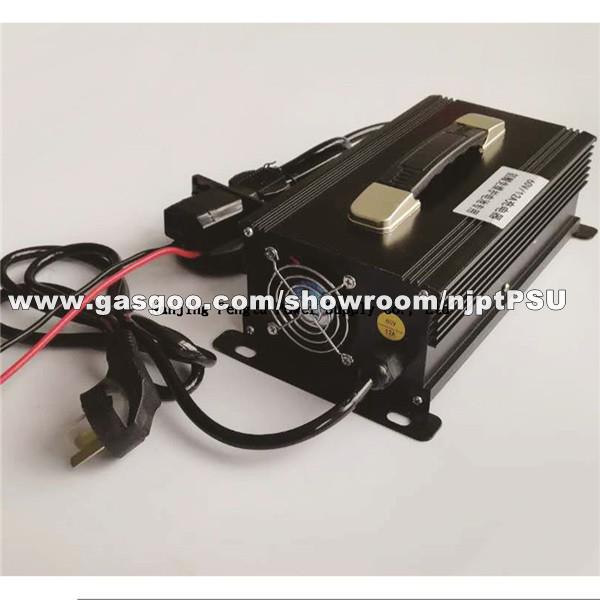

Product Name:1100W Series Sealed Portable Charger

1100W Series Sealed Portable Charger

Application

Low Speed Electric Vehicle, Electric Motorcycle, Electric Tricycle, Forklift, Tourist Vehicle, Golf Car.

Product Description:

OEM No/Model: PTDS4815
  Product introduction and application areas
The 1100W Series Sealed Portable charger are designed with aluminum profile structure. They are suitable for liquid-rich lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters
. Ac input voltage range: 200-240VAC;45-65HZ
. AC max input current: 6A@220VAC
. Max Efficiency: 90% (Full Load)
. Noise: 55dB
.Working temperature:-30~55
.Storage temperature:-40~95
Product specifications
.Dimensions:262*142*78mm
. Net weight: 2.0kg
Multiple protection
.Output over current protection       .Output reverse connection protection
.Output over voltage protection       .Over temperature protection
.Output short circuit protection        .Fully charge automatic shutdown
.Output no-load protection

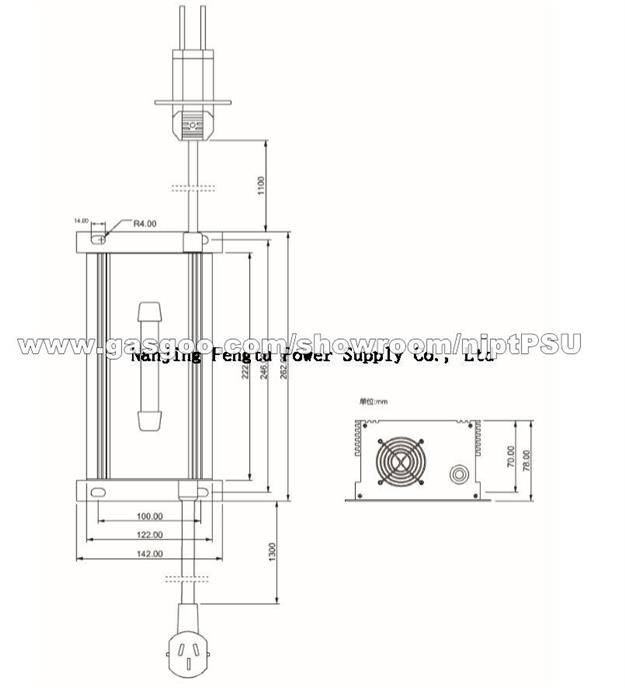

Mechanical Size&Model selection

Item	Battery Rated Voltage	Max Output Voltage	Max output current
PTDS4815	48V	68V	15A
PTDS6012	60V	85V	12A
PTDS6015	60V	85V	15A
PTDS7212	72V	102V	12A

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage.

Nanjing Pengtu Power Supply Co.,Ltd is a high-tech enterprise specializing in the development,design,production,sales and service of chargers,module power supplies and power modules.The company was incorporated in 2007 and is located at No.381,Pugang Street,Jiangning District,Nanjing,China. The ...[Read More]
