Quick Details

• Dimension:

  281.00*128.00*85.00

• Place of Origin:

  Nanjing China

• Samples:

  Charge

• Sample Price:

  Bargain

• Delivery Time:

  15days

• Packing:

  Put In The Carton And Make Transportation Safety Measures

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  1000pieces/Month

• Export Ratio:

  31% - 40%

• OE Experience:

  No

Product Name:1.2KW Series Sealed On Board Charger

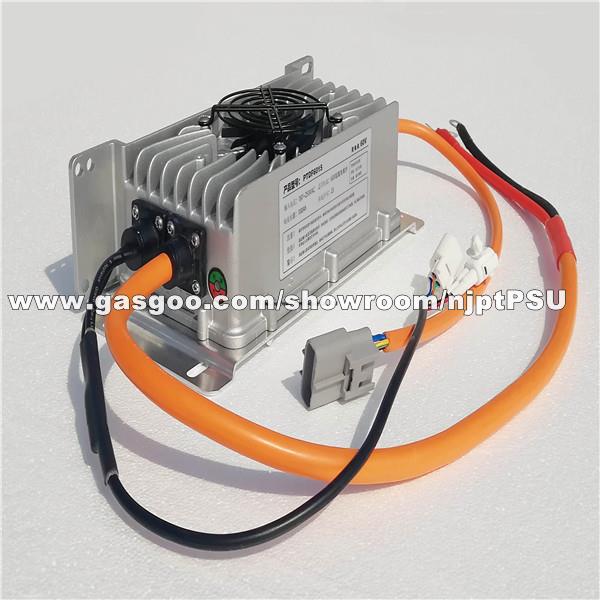

1.2KW Series Sealed On Board Charger

Application

PENGTU

Product Description:

OEM No/Model: PA1K2M48FM15
  Product introduction and application areas
The 1.2KW Series Sealed On board chargers are designed with integrated die-casting structure.They are suitable for flooded lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.

Technical parameters
.Ac input voltage range:180-260VAC;45-65HZ
.AC max input current:6A 220VAC
.Power factor:0.98
.Max Efficiency:93%(Full Load)
.Noise:45dB
.Protection grade:IP67
.Working temperature:-30~55
.Storage temperature:-40~95
Optional advanced configuration
.Can be with CAN bus;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Meet the requirements for various occasions.
Product specifications
.Dimensions:281.00*128.00*84.00mm
.Net weight:3.0kg
Multiple protection
.Output over current protection        .Input over voltage protection
.Output over voltage protection        .Input under voltage protection
.Output short circuit protection        .Over temperature protection
.Output no-load protection            .Fully charge automatic shutdown
.Output reverse connection protection   .CAN failure protection
Mechanical Size&Model selection

Item	Battery Rated Voltage	Max Output Voltage	Max output current
PA1K2M48FM15	48V	68V	15A
PA1K2M60FM15	60V	85V	15A
PA1K2M72FM15	72V	102V	15A

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage.
