Quick Details

• Voltage:

  12v

• Type:

  Water temperature gauge

• Weight :

  5kg

• Material:

  other

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  In Stock

• Packing:

  NEW IN BOX

• Delivery Port:

  Shenzhen

• Max. Production Capacity:

  100PC/Month

• Export Ratio:

  61% - 70%

• OE Experience:

  No

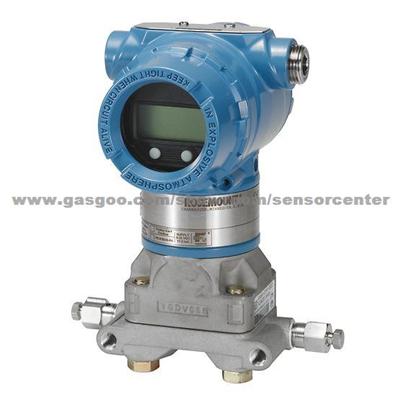

Product Name:Rosemount 3051CFP Wireless Integral Orifice Flow Meter

Rosemount 3051CFP Wireless Integral Orifice Flow Meter

Application

ROSEMOUNT

Product Description:

OEM No/Model: 3051CFP
Rosemount  3051CFP Wireless Integral Orifice Flow Meter
Eliminate the cost of wiring with the Rosemount 3051CFP Wireless Integral Orifice Flow Meter, a device that delivers industry-leading accuracy in flow measurement via WirelessHART? protocol. The WirelessHART? network is secure and cost-effective, offering quick installation of measurement points and delivering >99% data reliability. This flow meter also includes an integral orifice primary element for small line sizes (0.5 - 1.5 in. or 15 - 40 mm).


Our services:
1.We can provide 1-year warranty.
2.The goods will be shipped out within about 3-5 working days.
3.Shipping methods: air by DHL/UPS/EMS/Fedex...
4.Small orders can be all accepted.
5.Contact us any time when you feel free.
Specifications

DOWNLOAD FULL SPECS
Measurement Type Differential Pressure
Accuracy Up to ±1.75% of flow rate
Stability Up to ±0.20% of Upper Range Limit (URL) for 10 years
Warranty Up to 5-year limited warranty
Rangedown Up to 100:1 (5:1 flow turndown)
Measurement Range Up to 1000 inH2O (2,48 bar) differential
Line Size 0.5 to 1.5 in. (15 to 40 mm)
Output Differential pressure, scaled variable
Communication Protocol WirelessHART?
Process Wetted Material 316 SST
Diagnostics Basic Diagnostics
Certifications/Approvals NACE?, hazardous location, see full specs for complete list of certifications
Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Internal antenna (225 m)



Features

WirelessHART? technology is secure, cost-effective and delivers >99% data reliability
10-year stability and 8:1 flow turndown (150:1 rangedown) produce reliable measurements and application flexibility
Integral orifice primary element integrated in a meter run for ease of installation
Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
Primary element suitable for small line sizes 0.5- 1.5 in. (15 - 40 mm) for optimal accuracy and repeatability
SmartPower? module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
