Product Name:Rosemount 3051S Wireless MultiVariable Transmitter

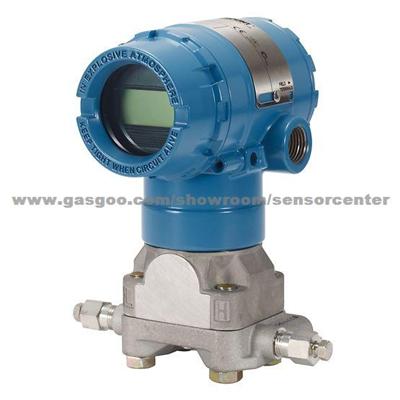

Rosemount 3051S Wireless MultiVariable Transmitter

Application

ROSEMOUNT

Product Description:

OEM No/Model: 3051S
Rosemount  3051S Wireless MultiVariable  Transmitter

The Rosemount 3051S Wireless MultiVariable Transmitter features multivariable measurement capabilities paired with WirelessHART? technology, offering a no-equal, cost-efficient solution. This wireless transmitter provides measurements for differential and static pressure with >99% data reliability. Capable of standardizing on a single model number, this device is a cost-effective device that reduces pipe penetrations, impulse piping and connection systems.



Our services:
1.We can provide 1-year warranty.
2.The goods will be shipped out within about 3-5 working days.
3.Shipping methods: air by DHL/UPS/EMS/Fedex...
4.Small orders can be all accepted.
5.Contact us any time when you feel free.

Specifications

Measurement Type
    Differential Pressure and Static Pressure

Accuracy
    Up to ±0.04% of span or ±0.04% of reading

Stability
    Up to ±0.20% of Upper Range Limit (URL) for 15 years

Warranty
    Up to 15-year limited warranty

Rangedown
    Up to 200:1

Communication Protocol
    WirelessHART?

Measurement Range
    Up to 2000 psi (137,89 bar) differential, Up to 3626 psig (250,00 bar) static

Process Wetted Material
    316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST

Diagnostics
    Basic Diagnostics

Certifications/Approvals
    NSF, NACE?, hazardous location, see full specs for complete list of certifications

Update Rate
    1 sec. to 60 min., user selectable

Power Module Life
    Up to 10-year life, field replaceable (order separately)

Wireless Range
    Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)




Features

    WirelessHART?technology is secure, cost-effective and delivers >99% data reliability
    Measures multiple variables and standardizes on a single model number for streamline process and cost-efficiency
    Reduces costs by eliminating the need for stacked transmitters and wiring
    Primary elements available as assemble-to options for simple installation and commissioning
    Multivariable design reduces pipe penetrations, impulse piping and connection systems for cost-savings
    All-welded, SuperModule? design offers industry-leading accuracy in harsh environments and applications
    Ultra for Flow provides optimized pressure measurement with a ±0.04% of reading accuracy
    SmartPower? module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
    Easy installation enables quick instrumentation of measurement points without the cost of wiring
