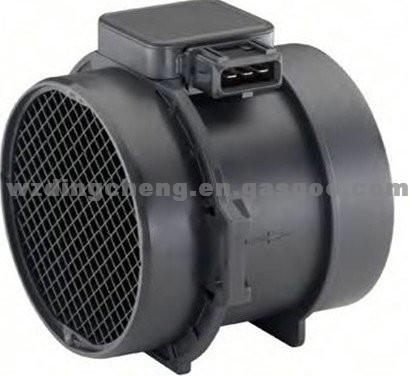

DC-AFS066 VDO Supplier Mass Air Flow Sensor 5WK96132 / 8ET009142-341 For BMW

Application: BMW

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$12-16/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

BMW

Production Description:

ITEM NO.: DC-AFS066

REF NO.:

SIEMENS 5WK96132
5WK96132Z
HELLA 8ET 009 142-341

OEM NO.:

BMW 13 62 7 567 451
13 62 1 438 871
1 438 871

APPLICATION FOR:

BMW 3 (E46) 330 i / 330 xi
BMW 3 Convertible (E46) 330 ci
BMW 3 Coupe (E46) 330 xi
BMW 3 Touring (E46) 330 i / 330 xi
BMW 5 (E39) 530 i
BMW 5 Touring (E39) 530 i
BMW X5 (E53) 3.0 i
BMW Z3 (E36) 3.0
BMW Z3 Coupe (E36) 3.0

Mass Air Flow Sensor DC-AFS066
- Aluminum Ceramics Substrate (96% AL2O3)
- New Technology for sensor head same as origianl
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:
It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2)Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
