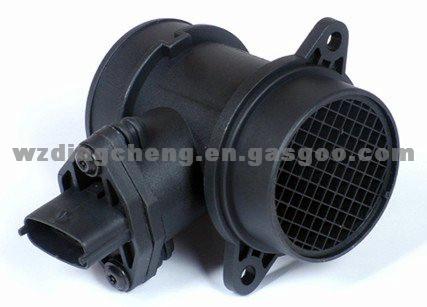

DC-AFS107 VDO Matching Mass Air Flow Sensor 0280218027 For HYUNDAI 28164 22610

Application: Hyundai

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:533933cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Hot-film Sensor Head:It is our company independently developed by platinum

New technology item:Sensor head material and technology is same as Original(bosch)

Software adjust analog voltage through:Bare chip import from Advanced Country

Applicationt:

Hyundai

Production Description:

ITEM NO.: DC-AFS107

REF NO.:
BOSCH 0 280 218 027

OEM NO.:

HYUNDAI 2816422610

APPLICATION FOR:
HYUNDAI ACCENT(LC) 1.3 Hatchback 01.00
HYUNDAI ACCENT(LC) 1.3 Hatchback 08.02
HYUNDAI ACCENT(LC) 1.3 Hatchback 01.00
HYUNDAI ACCENT Saloon(LC) 1.3 01.00
HYUNDAI ACCENT Saloon(LC) 1.3 01.00

Mass Air Flow Sensor DC-AFS107
1)Standard material according to technical drawings
2)New Technology item available
3)ISO/TS16949 Certification Approval

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).

New Technology Item: sensor head technology and material is same as original and also use the software to adjust the analog voltage.
