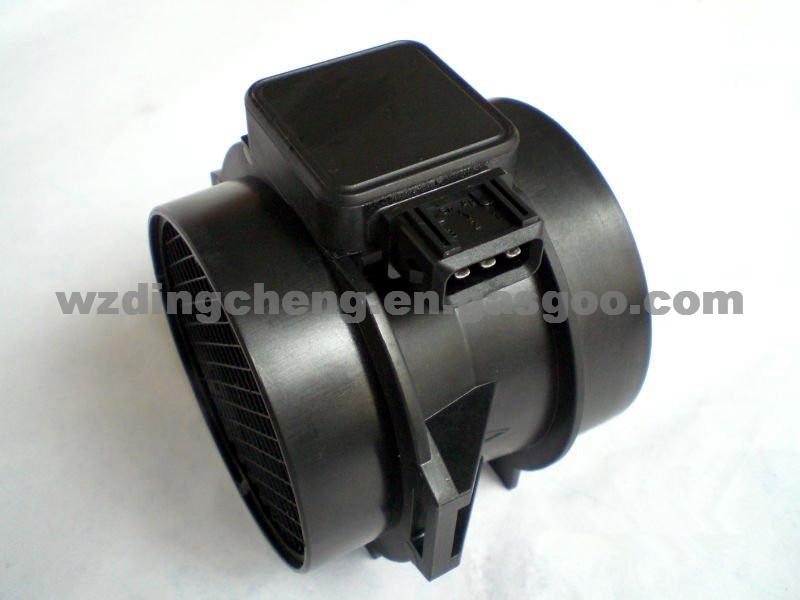

DC-AFS064 VDO Supplier Mass Air Flow Sensor 5WK9643 / 8ET 009 142-441 For HYUNDAI / KIA

Application: HYUNDAI, KIA

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$13-20/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

HYUNDAI, KIA

Production Description:

ITEM NO.: DC-AFS064

REF NO.:

SIEMENS 5WK9643
5WK9643Z
HELLA 8ET 009 142-441

OEM NO.:

HYUNDAI/KIA 28164-37200

APPLICATION FOR:

HYUNDAI COUPE (GX) 2.7 V6
HYUNDAI HIGHWAY VAN 2.7 V6 24V
HYUNDAI SANTA FE (SM) 2.7 V6 4x4
HYUNDAI SONATA IV (EF) 2.5 V6 24V
HYUNDAI SONATA IV (EF) 2.7 V6
HYUNDAI TRAJET (FO) 2.7 V6
HYUNDAI TUSSON (JM) 2.7 ALL-WHEEL Drive
HYUNDAI XG (XG) 25
KIA MAGENTIS (GD) 2.5 V6
KIA SPORTAGE (JE_) 2.7 V6 4WD

Mass Air Flow Sensor DC-AFS064
- Aluminum Ceramics Substrate (96% AL2O3)
- New Technology for sensor head same as origianl
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:
It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
