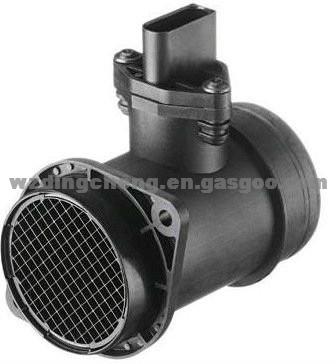

DC-AFS063 VDO Supplier Mass Air Flow Sensor 0281002768 For AUDI / SEAT / VW

Application: AUDI, SEAT, VW

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$13-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

AUDI, SEAT, VW

Production Description:

ITEM NO.: DC-AFS063

REF NO.:

BOSCH 0281002768

0281002216

0281002217

OEM NO.:

VW 028 906 461
038 906 461 D

APPLICATION FOR:

AUDI A4 (8D2,B5) 1.9 TDI
AUDI A4 Avant (8D5,B5) 1.9 TDI
AUDI A6 (4B,C5) 1.9 TDI
AUDI A6 Avant (4B,C5) 1.9 TDI
SEAT CORDOBA Hatchback (6K2) 1.9 TDI
SEAT CORDOBA Vario (6K5) 1.9 TDI
SEAT IBIZA III (6K1) 1.9 TDI
VW CADDY II Estate (9K9B) 1.9 TDI
VW PASSAT (3B2) 1.9 TDI
VW PASSAT (3B3) 1.9 TDI
VW PASSAT Variant (3B5) 1.9 TDI
VW PASSAT Variant (3B6) 1.9 TDI
VW POLO CLASSIC (6KV2) 90 1.9 TDI
VW POLO Variant (6KV5) 1.9 TDI

Mass Air Flow Sensor DC-AFS063
- Aluminum Ceramics Substrate (96% AL2O3)
- New Technology for sensor head same as origianl
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:
It is our company independently developed by platinum

New technology item:
sensor head material and technology is same as Original(BOSCH)

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
New Technology Item: sensor head technology and material is same as original and also use the software to adjust the analog voltage.
