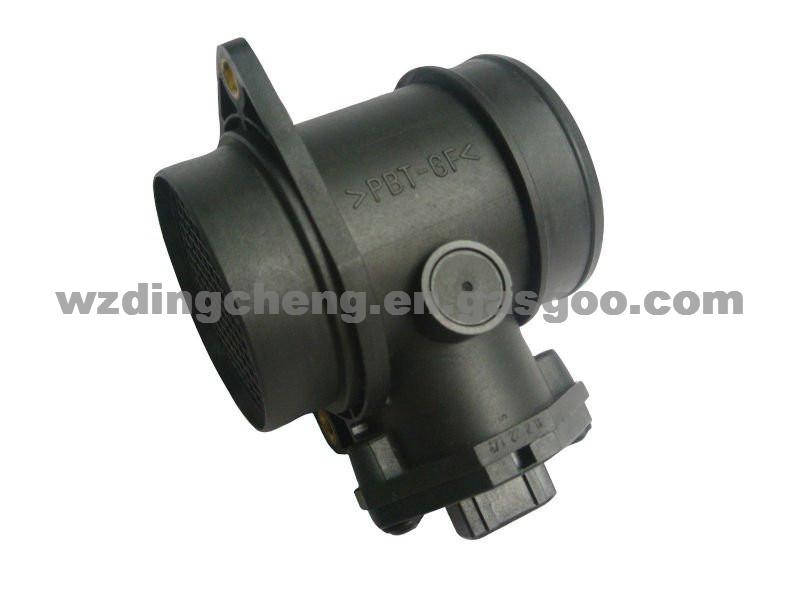

DC-AFS001 VDO Supplier Mass Air Flow Sensor 0280217002 For VOLVO

DC-AFS001 VDO Supplier Mass Air Flow Sensor 0280217002 For VOLVO

Application:  VOLVO

Market Type:  After Market

Packing:  1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:52*38*33cm

Samples:  Charge

Maximum Prodcution Capacity:  20000 Pieces Per Month

Delivery Time:  5-7 Days

Quality Certification:  TS16949

Place of origin:  Wenzhou, Zhejiang

Export Ratio:  91% - 100%

Unit Price:  USD US$11-18/Piece

Price Terms:  FOB

Delivery Port:  Ningbo / Shanghai

Payment Terms:  T/T

Minimum Order:  100Piece/Pieces

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

VOLVO

Production Description:

ITEM NO.:       DC-AFS001


REF NO.:

BOSCH          0280217002



OEM NO.:

VW                 06A 906 461R

VOLVO           1366220



APPLICATION FOR:

VOLVO 850(LS)2.0

VOLVO 850(LS)2.5

VOLVO 850 Estate(LW)2.0

VOLVO 850 Estate(LW)2.5



Mass Air Flow Sensor DC-AFS001
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board
Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American
well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)
have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
With high dielectric constant substrate and good conductivity-temperature performance,
to ensure that the circuit perform stability in high-low temperature state. General factory
with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in
developed countries in the international area, thick-film resistors with higher resistance
accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
