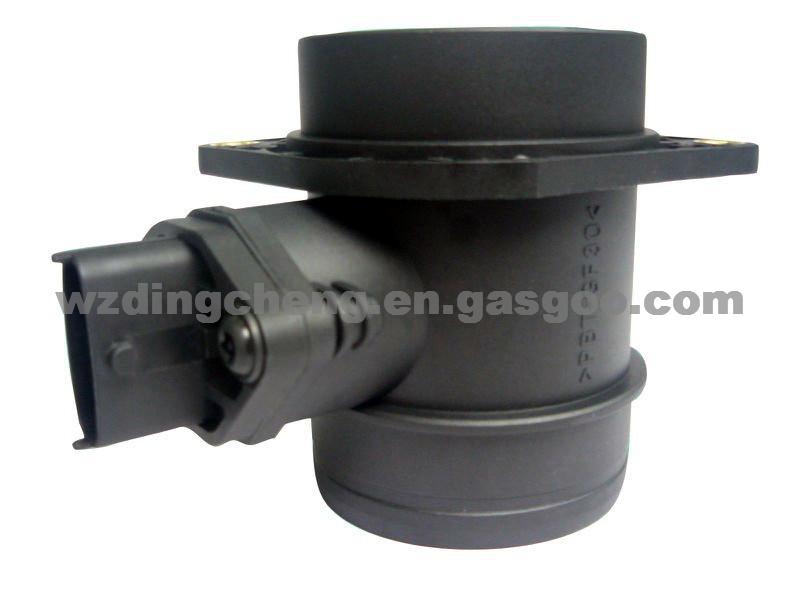

DC-AFS054 VDO Supplier Mass Air Flow Sensor 0281002308 For FIAT

Application: FIAT

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$13-16/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

FIAT

Production Description:

ITEM NO.: DC-AFS054

REF NO.:

BOSCH 0281002308

OEM NO.:

FIAT 4655982
46559828
6081644
60816448

APPLICATION FOR:

FIAT MAREA (185) 1.9 JTD 110
FIAT MAREA Weekend (185) 1.9 JTD 110
FIAT MULTIPLA (186) 1.9 JTD 110 / 1.9 JTD 115
FIAT STILO (192) 1.9 D Multijet / 1.9 JTD / 2.4 20V
FIAT STILO Multi Wagon (192) 1.9 D Multijet / 1.9 JTD
FIAT STRADA (178E) 1.9 JTD

Mass Air Flow Sensor DC-AFS054
- Aluminum Ceramics Substrate (96% AL2O3)
- New Technology for sensor head same as origianl
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:
It is our company independently developed by platinum

New technology item:
sensor head material and technology is same as Original(BOSCH)

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
New Technology Item: sensor head technology and material is same as original and also use the software to adjust the analog voltage.

DC-AFS054 VDO Supplier Mass Air Flow Sensor 0281002308 For FIAT
