Home » Showroom » » Products » Air Flow Meter » DC-AFS047 VDO Supplier Mass Air Flow Sensor 0280218116 For LADA

Company Info

	Wenzhou Dingcheng Electronic Technology Co. , Ltd Wuhan Branch
Street Address: No. 29, Changfeng Road, Changfeng Town, Qiaokou District, Wuhan, Hubei, China City: Wuhan Province: Hubei Country/Region: China
View Contact Details

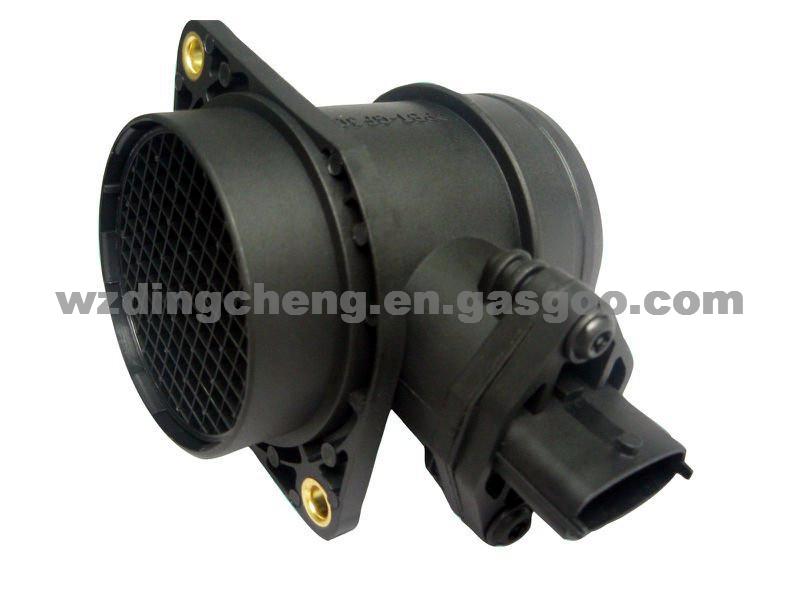

DC-AFS047 VDO Supplier Mass Air Flow Sensor 0280218116 For LADA

Application: LADA

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:523833cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$12-16/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

LADA

Production Description:

ITEM NO.: DC-AFS047

REF NO.:
BOSCH 0280218116

OEM NO.:
LADA 21083-1130010-20

APPLICATION FOR:
LADA 110 1.5 / 1.5 16V
LADA 111 1.5 16V
LADA 112 1.5 / 1.5 16V
LADA KALINA Estate (1117) 1.4 16V / 1.4 16V LPG / 1.6
LADA KALINA Hatchback (1119) 1.4 16V / 1.4 16V LPG / 1.6 / 1.6 16V
LADA KALINA Saloon (1118) 1.4 16V / 1.4 16V LPG / 1.6
LADA PRIORA Estate (2171) 1.6
LADA PRIORA Hatchback (2172) 1.6 / 1.6 LPG
LADA PRIORA Saloon (2170) 1.6 / 1.6 LPG

Mass Air Flow Sensor DC-AFS047
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approva

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).

DC-AFS047 VDO Supplier Mass Air Flow Sensor 0280218116 For LADA
