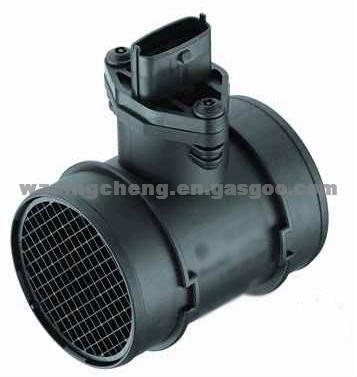

DC-AFS046 VDO Supplier Mass Air Flow Sensor 0280218113 For ALFA ROMEO / FIAT / LANCIA

Application: ALFA ROMEO, FIAT, LANCIA

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$11-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

ALFA ROMEO, FIAT, LANCIA

Production Description:

ITEM NO.: DC-AFS046

REF NO.:
BOSCH 0280218113

OEM NO.:
VW 46811312
60802028

APPLICATION FOR:
FIAT DOBLO (119) 1.9 JTD / 1.9 JTD (223AXE1A)
FIAT DOBLO Cargo (223) 1.9 JTD / 1.9 JTD (223ZXE1A)
FIAT PUNTO (188) 1.9 JTD
LANCIA LYBRA (839AX) 2.4 JTD
LANCIA LYBRA SW (839BX) 2.4 JTD
LANCIA THESIS (841AX) 2.4 JTD
ALFA ROMEO 156 (932) 1.9 JTD / 1.9 JTD 16V / 2.0 JTS (932AXA) / 2.4 JTD (932B1)
ALFA ROMEO 156 Sportwagon (932) 2.0 / 1.9 JTD / 1.9 JTD 16V / 1.9 JTD 16V Q4
/ 2.0 JTS (932BXA)
ALFA ROMEO GTV (916C_) 1.8 16V (916C3) / 2.0 T.SPARK 16V
ALFA ROMEO SPIDER (916S_) 1.8 16V (916S3) /  2.0 T. SPARK 16V

Mass Air Flow Sensor DC-AFS046
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approva

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
