DC-AFS036 VDO Supplier Mass Air Flow Sensor 0280218060 For AUDI / SEAT / SKODA / VW

Application: AUDI, SEAT, SKODA, VW

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$11-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

AUDI, SEAT, SKODA, VW

Production Description:

ITEM NO.: DC-AFS036

REF NO.:
BOSCH 0280218060
0280218061
0986280216

OEM NO.:
VW 06A 906 461 G
06A 906 461 GX
VEMO 10-72-0975

APPLICATION FOR:
AUDI A3 (8L1) 1.8
AUDI Q7 (4L) 4.2 FSI
SEAT ALHAMBRA (7V8,7V9) 2.0 i / 1.8 T 20V
SEAT CORDOBA (6L2) 2.0
SEAT IBIZA IV (6L1) 2.0
SEAT LEON (1M1) 1.8 20V
SEAT TOLEDO II (1M2) 1.8 20V
SKODA FABIB (6Y2) 2.0
SKODA FABIB Combi (6Y5) 2.0
SKODA FABIB Saloon (6Y3) 2.0
SKODA OCTAVIA Combi (1U5) 2.0 / 2.0 4x4
VW BORA (1J2) 1.6 FSI / 2.0 / 2.0 4motion
VW BORA Estate (1J6) 1.6 FSI / 2.0 / 2.0 4motion
VW GOLF IV (1J1) 1.6 FSI / 2.0 / 2.0 4motion
VW GOLF IV Variant (1J5) 1.6 FSI / 2.0 / 2.0 4motion / 2.0 Bi-Fuel
VW MULTIVAN V (7HM,7HN,7HF,7EF,7EM,7EN) 2.0
VW NEW BEETLE (9C1,1C1) 1.8 T / 2.0
VW NEW BEETLE Convertible (1Y7) 1.8 T / 2.0
VW PHAETON (3D2) 4.2 V8 4motion
VW SHARAN (7M8,7M9,7M6) 1.8 T 20V / 2.0 LPG
VW TOUAREG (7LA,7L6,7L7) 4.2 V8 / 4.2 V8 FSI
VW TRANSPORTER V Box (7HA,7HH,7EA,7EH) 2.0
VW TRANSPORTER V Bus (7HB,7HJ,7EB,7EJ) 2.0

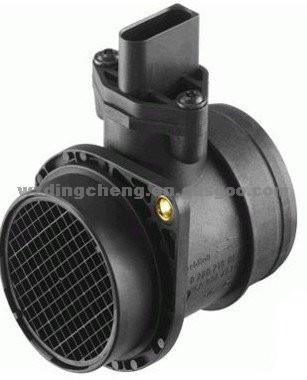

Mass Air Flow Sensor DC-AFS036
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
