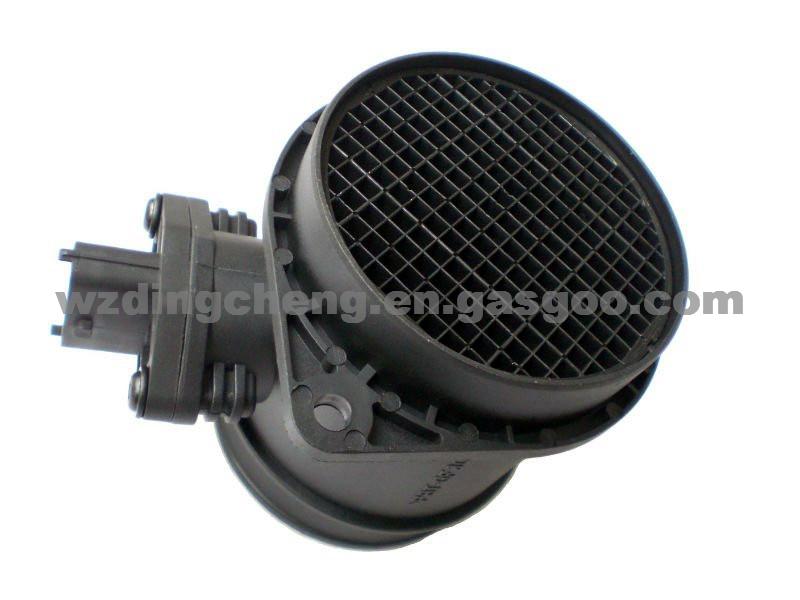

DC-AFS022 VDO Supplier Mass Air Flow Sensor 0280218007 For VOLVO

Application: VOLVO

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$11-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

VOLVO

Production Description:

ITEM NO.:   DC-AFS022

REF NO.:
BOSCH 0280218007
0280218045
0280218108

OEM NO.:
VOLVO 3517020
8251497
8602792
8670112
8670263
9470640

APPLICATION FOR:
VOLVO C70 I Coupe 2.0 T / 2.5 T /2.3 T-5
VOLVO C70 I Convertible 2.0 T / 2.5 T / 2.3 T-5
VOLVO S60 2.4 T / T5
VOLVO S70 (P80_) 2.0 / 2.0 Turbo / 2.4 Turbo / 2.3 T-5 / 2.5 TDI
VOLVO S80 (TS,XY) 2.0 / 2.9 / 2.0 T / 2.4 T / 2.5 TDI
VOLVO V70 I Eastate (P80_) 2.0 / 2.5 AWD / 2.3 T-5 / 2.5 TDI / 2.0 Turbo / 2.4 Turbo / 2.3 T-5 AWD / 2.0 Turbo AWD / 2.5 Turbo AWD
VOLVO V70 II Eastate (P80_) 2.0 T/ 2.4 T / 2.3 T-5 / 2.5 TDI
VOLVO XC70 CROSS COUNTRY 2.4 T XC AWD

Mass Air Flow Sensor DC-AFS022
- Standard material according to technical drawings
- New Technology item available
- Accurancy with 3% compare to OE parts
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American
well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)
have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance,
to ensure that the circuit perform stability in high-low temperature state. General factory
with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in
developed countries in the international area, thick-film resistors with higher resistance
accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
