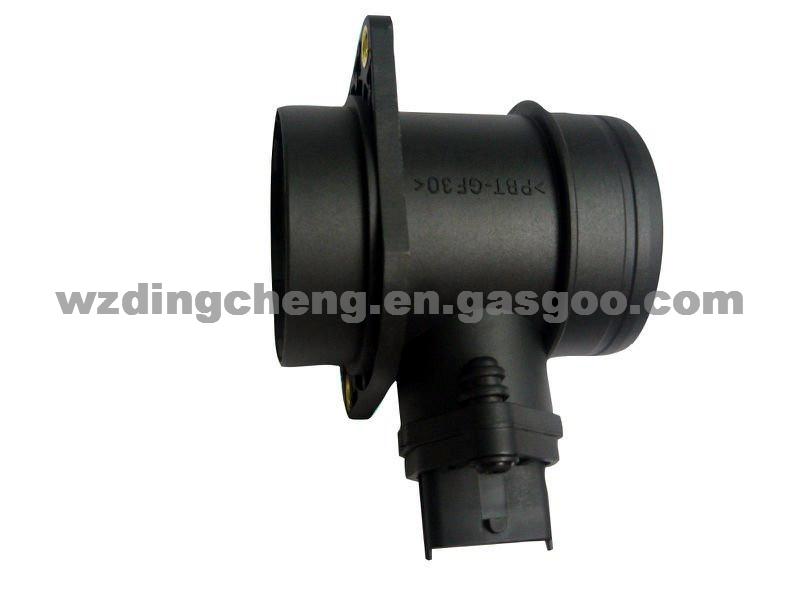

DC-AFS021 VDO Supplier Mass Air Flow Sensor 0280218004 For LADA

Application: FIAT, LADA

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$12-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

FIAT, LADA

Production Description:

ITEM NO.:   DC-AFS021

REF NO.:
BOSCH 0280218004

OEM NO.:
FIAT 46533308
LADA 210831131001

APPLICATION FOR:
FIAT MAREA (185) 2.4 JTD 130
FIAT MAREA Weekend (185) 2.4 JTD 130
FIAT MULTIPLA (186) 1.9 JTD 105 (186AXB1A)
LADA 110 1.5 / 1.5 16V
LADA 111 1.5 / 1.5 16V
LADA 112 1.5 / 1.5 16V
LADA NIVA (2121) 1700 i
LADA SAMARA (2108, 2109) 1300 / 1500
LADA SAMARA FORMA (21099) 1500

Mass Air Flow Sensor DC-AFS021
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American
well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)
have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance,
to ensure that the circuit perform stability in high-low temperature state. General factory
with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in
developed countries in the international area, thick-film resistors with higher resistance
accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
