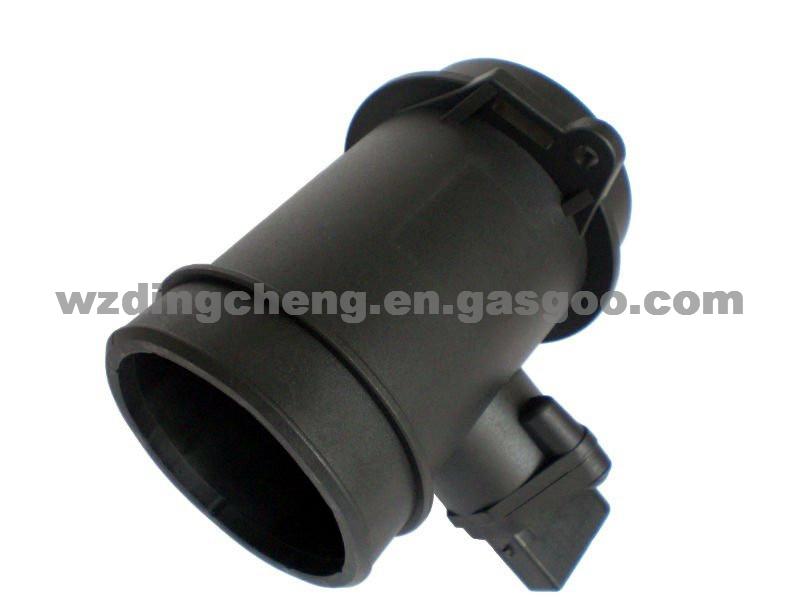

DC-AFS016 VDO Supplier Mass Air Flow Sensor 0280217517 For MERCEDES-BENZ

Application: MERCEDES-BENZ

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$11-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

MERCEDES-BENZ

Production Description:

ITEM NO.: DC-AFS016

REF NO.:
BOSCH 0280217517
0280217518

OEM NO.:

MERCEDES-BENZ 000 094 10 48
A 000 094 10 48

SSANGYONG 000 094 05 48
16 209 43 148
AFM030

APPLICATION FOR:
MERCEDES-BENZ C-CLASS (W202) C 280 / C 36 AMG
MERCEDES-BENZ S-CLASS (W140) S 280 / S 320 / 300 SE / 300 SE 2.8
MERCEDES-BENZ SL (R129) 280 / 320
MERCEDES-BENZ SPRINTER 2-t Flatbed / Chassis (901,902) CDI
MERCEDES-BENZ SPRINTER 2-t Box (901,902) CDI
MERCEDES-BENZ SPRINTER 2-t Bus (901,902) CDI
MERCEDES-BENZ SPRINTER 3-t Flatbed / Chassis (903) CDI
MERCEDES-BENZ SPRINTER 3-t Box (903) CDI
MERCEDES-BENZ SPRINTER 3-t Bus (903) CDI
MERCEDES-BENZ SPRINTER 4-t Flatbed / Chassis (904) CDI
MERCEDES-BENZ SPRINTER 4-t Box (904) CDI
MERCEDES-BENZ SPRINTER 4-t Bus (904) CDI
MERCEDES-BENZ SSANGYONG MUSSO (FJ) 3.2

Mass Air Flow Sensor DC-AFS016
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American
well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)
have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance,
to ensure that the circuit perform stability in high-low temperature state. General factory
with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in
developed countries in the international area, thick-film resistors with higher resistance
accuracy (3%) and a smaller temperature coefficient (less than 100ppm).

DC-AFS016 VDO Supplier Mass Air Flow Sensor 0280217517 For MERCEDES-BENZ
