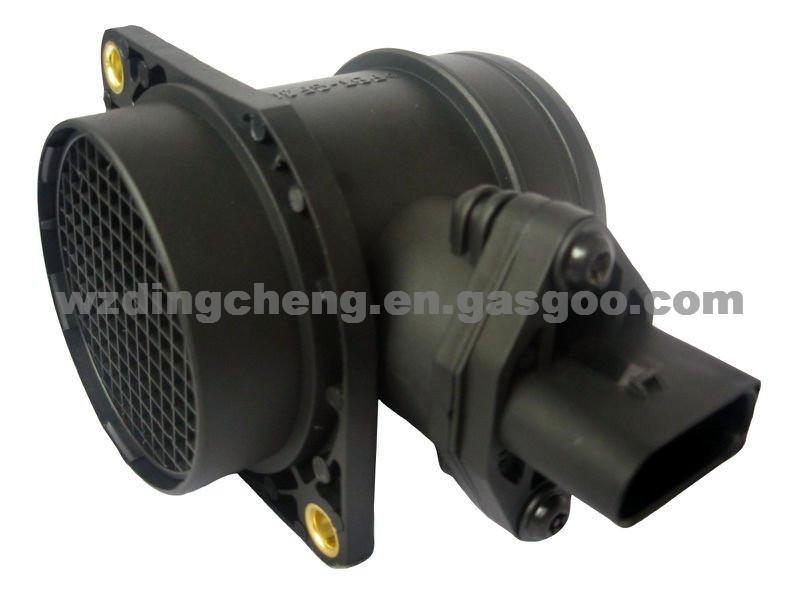

DC-AFS011 VDO Supplier Mass Air Flow Sensor 0280217122 For FORD / VW

Application: AUDI, FORD, SEAT, SKODA, VW

Market Type: After Market

Packing: 1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:543934cm

Samples: Charge

Maximum Prodcution Capacity: 20000 Pieces Per Month

Delivery Time: 5-7 Days

Quality Certification: TS16949

Place of origin: Wenzhou, Zhejiang

Export Ratio: 91% - 100%

Unit Price: USD US$12-18/Piece

Price Terms: FOB

Delivery Port: Ningbo / Shanghai

Payment Terms: T/T

Minimum Order: 100Piece/Pieces

Language Translator

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

AUDI, FORD, SEAT, SKODA, VW

Production Description:

ITEM NO.: DC-AFS011

REF NO.:
BOSCH 0280217122

OEM NO.:

VW 06A 906 461
06A 906 461X
038 906 461CX
FORD 1 051 396
1 384 275
1 428 448

APPLICATION FOR:
AUDI A3 (8L1) 1.9 TDI
AUDI A4 (8E2, B6) 1.9 TDI
FORD GALAXY (VX,VY) 1.9 TDI
SEAT ALHAMBRA (7V87V9) 1.9 TDI / 1.9 TDI 4 motion
SEAT IBIZA IV (6L1) 1.9 TDI
SEAT LEON (1M1) 1.9 TDI
SEAT TOLEDO II (1M2) 1.9 TDI
SKODA FABIA (6Y2) 1.9 TDI
SKODA FABIA Sedán (6Y3) 1.9 TDI
SKODA FABIA Combi (6Y5) 1.9 TDI
SKODA OCTAVIA (1U2) 1.9 TDI
SKODA OCTAVIA Combi (1U5) 1.9 TDI / 1.9 TDI 4x4
VW BORA (1J2) 1.9 TDI / 1.9 TDI 4motion
VW BORA Variant (1J6) 1.9 TDI / 1.9 TDI 4motion
VW GOLF IV (1J1) 1.9 TDI / 1.9 TDI 4motion
VW GOLF IV Variant (1J5) 1.9 TDI
VW NEW BEETLE (9C1, 1C1) 1.9 TDI
VW POLO (9N_) 1.4 TDI
VW SHARAN (7M8, 7M9) 1.9 TDI

Mass Air Flow Sensor DC-AFS011
- Standard material according to technical drawings
- New Technology item available
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board

Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms) have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm).

DC-AFS011 VDO Supplier Mass Air Flow Sensor 0280217122 For FORD / VW
