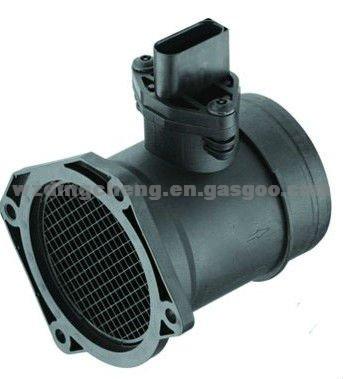

DC-AFS024 VDO Supplier Mass Air Flow Sensor 0280218013 For Audi / VW

DC-AFS024 VDO Supplier Mass Air Flow Sensor 0280218013 For Audi / VW

Application:  AUDI, VW

Market Type:  After Market

Packing:  1PC/Box,30Boxes/Carton Buddle Bag And White Box Buyer Package Is Acceptable Size:54*39*34cm

Samples:  Charge

Maximum Prodcution Capacity:  20000 Pieces Per Month

Delivery Time:  5-7 Days

Quality Certification:  TS16949

Place of origin:  Wenzhou, Zhejiang

Export Ratio:  91% - 100%

Unit Price:  USD US$11-18/Piece

Price Terms:  FOB

Delivery Port:  Ningbo / Shanghai

Payment Terms:  T/T

Minimum Order:  100Piece/Pieces

Product Attribute:

Work Voltage:14V DC

Electric Current:≤350mA

Output Voltage:0~5V

Accuracy:≤3%

Response Time:≤15ms

Application Temperature:-40°C~+125°C

Applicationt:

AUDI, VW

Production Description:

ITEM NO.:     DC-AFS024

REF NO.:
BOSCH        0280218013

                      0280218014
                      0280218471
                      0986280206


OEM NO.:

VW                06B 133 471
                      06B 133 471X


APPLICATION FOR:
AUDI A4 (8D2, B5) 1.8 / 1.8 quattro
AUDI A4 Avant (8D5, B5) 1.8 / 1.8 quattro
AUDI A6 (4B, C5) 1.8
AUDI A6 Avant (4B, C5) 1.8
VW PASSAT (3B2) 1.8 / 1.8 Syncro/4motion
VW PASSAT Variant (3B5) 1.8 / 1.8 Syncro/4motion

Mass Air Flow Sensor DC-AFS024
- Standard material according to technical drawings
- New Technology item available
- Accurancy with 3% compare to OE parts
- Import adjustable bare chip same as OE
- ISO/TS16949 Certification Approval

Hot-film Sensor Head:

It is our company independently developed by platinum

Main circuit:
96%AL2O3 aluminium ceramic board
Software adjust analog voltage through:
Bare chip import from Advanced Country

OUR ADVANTAGE:
1) Hot-film sensor head:
It is our company independently developed by platinum, material taken from American
well-known manufacturer of electronic slurry, in order to ensure the products have a
good temperature probe. (Temperature coefficient: 3850ppm; and response time 15ms)
have APPLY PATENT.
2) Aluminum Ceramics Substrate( 96% AL2O3 ):
with high dielectric constant substrate and good conductivity-temperature performance,
to ensure that the circuit perform stability in high-low temperature state. General factory
with using epoxy board (low prices),but Thermal performance is not very good .
3) The main circuit board:
Used the technical of thick film Hybrid Integrated Circuit, which is commonly used in
developed countries in the international area, thick-film resistors with higher resistance
accuracy (3%) and a smaller temperature coefficient (less than 100ppm).
