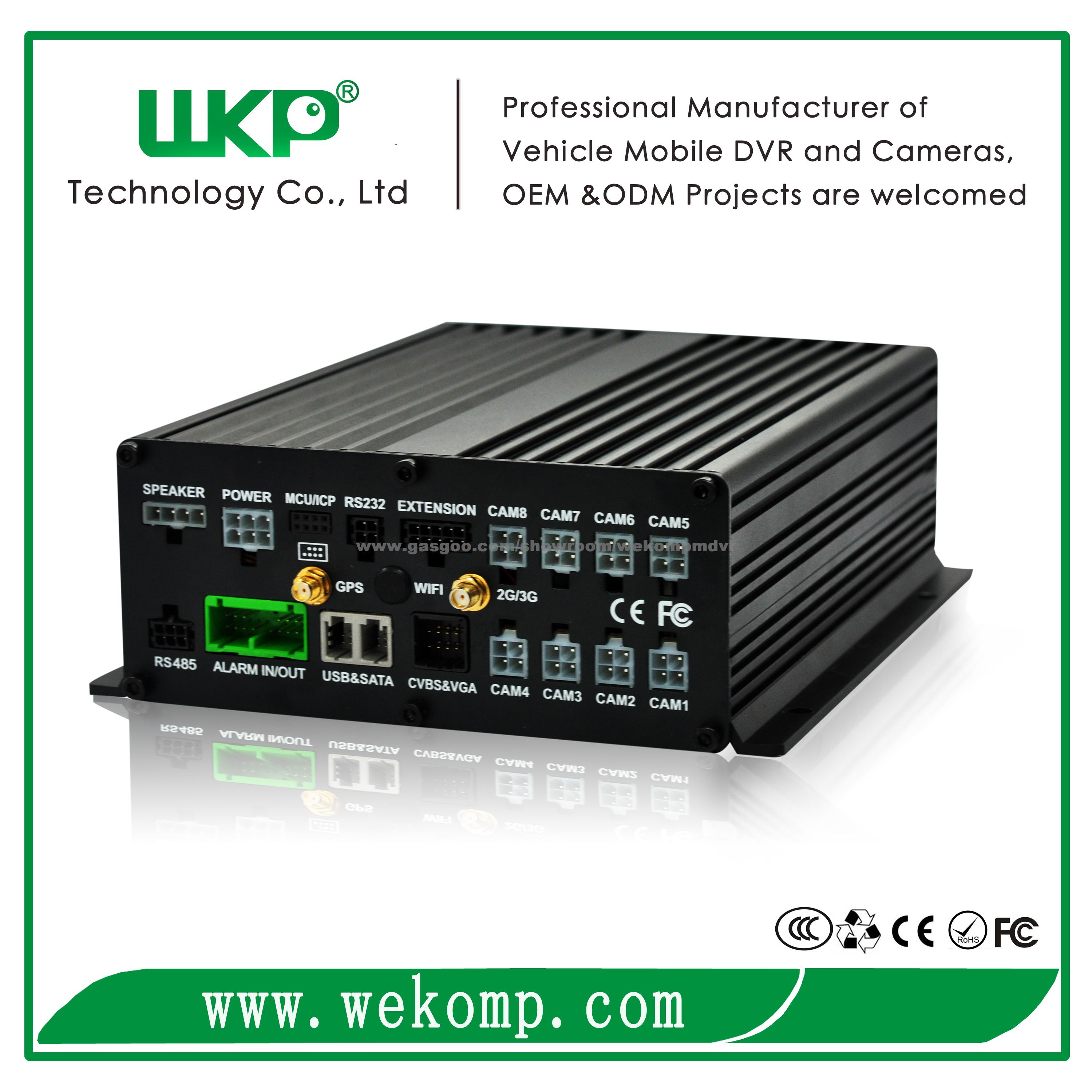

8 CH Full D1 HDD Vehicle MDVR With 3G/WIFI/GPS

Product Attribute:

Voltage:8-36V

Display Size:220*166*70mm

G.W:2.6kg

Power:12-60w

Language:English/Chinese

Operating System:Linux

Video input:8 channel

Video output:1 channel RCA

Video compression:H.264

Video Resolution:D1/HD1/CIF adjustable

Signal System:NTSC/PAL

Audio Input:8 Channel

Audio Output:1 Channel RCA

Audio Compresssion:ADPCM

Alarm Input:8 Channel

Alarm Output:2 Channel

Recorded video resolution:D1/HD1/CIF adjustable

Local storage:2.5 inch 1TB(MAX) HDD and 1 SD card 64GB(MAX)

Built-in Modules (optional):GPS/3G/WiFi

Extended Interface:1 RJ45 Ethernet interface + 1 RS232 and 3 RS485 + 1 Speed sensor

Power input:DC 8V to 36V

Power output:4 Channel DC 12V 500mA

Power Consumption:12W to 60W

Applicationt:

car, bus, truck, taxi etc

Production Description:

Features

• 4 channel full D1;
• H.264video compression, linux operation system, dual streaming;
• Unique patent in anti-vibration.6 pins contact interface design connecting;
  HDD case with the mainboard to ensure stable working in complex condition with vibrationHard disk auto-heating;
• Max 1TB in storage(2.5 inch hard disk);
• Digital watermark
• Internal 3G(WCDMA/EVDO), WIFI, GPS modules optional;
• Motion detection
• 8 seconds power-off delay for data protection, in order to prevent data lost and file destroyrf by instant power-off;
• One SD card slot(max 64GB), one E-SATA HDD interface, two USB 2.0 interfaces and other interfaces such as RS485, RS232,etc.;
• Peripheral deviceextention supported, e.g. control panel, bus stops announcement;
• Black box for vehicles,  recording speed, position, acceleration, temperature, brakes, backing up, turns, alarms and other important information;
• DC 8V to 36V wide range voltage power supply, embedded design in industrial standard, aluminum metal shell, low power consumption;
• Operating temperature -25 to +85

Model Options

Model	CW3001	CW3002	CW3003-E	CW3003-W	CW3004	CW3005- E	CW3005-W
Description	G-SENSOR	G-SENSOR + GPS	G-SENSOR + GPS + 3G(EVDO)	G-SENSOR + GPS + 3G(WCDMA)	G-SENSOR + GPS + WIFI	G-SENSOR + GPS + 3G(EVDO) + WIFI	G-SENSOR + GPS + 3G(WCDMA) + WIFI
