70A 80A 12V 24V 1A 1C 4pins 5pins QC PCB Car Relays

Product Attribute:

Supply Ability:800000 Piece/Pieces per Year

Delivery Details:15-30 working days for 70A 80A 12V 24V 1A 1C 4pins 5pins QC PCB

Production Description:







   70A 80A 12V 24V 1A 1C 4pins 5pins QC PCB Car Relays



Related Product





Product Information









F1	Relay feature:



-70A switching capability

-Ambient temp. Can reach 125.C

-1 form A contact arrangement

-Sealed and dust cover type availlable

-With transient suppression resistar

-Outline dimensions:26.5*26.5*25.2mm



  70A 80A 12V 24V 1A 1C 4pins 5pins QC PCB Car Relays

F2	Specification:







characteristics
Contact Form				1A  1C
Contact material				Silver Alloy
Max.Switching Current				70A
Max.Switching voltage				50VDC
Min.Contact Load				1A 6VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				500MΩ
Dielectric strength				500VAC
Operate Time				5-10ms
Release Time				5-10ms
Ambient temperature				-40°C~+85°C
Storage Temperature				-40°C~+155°C
Termination				QC
Construction				Sealed ,dust cover
Unit Weight				42g

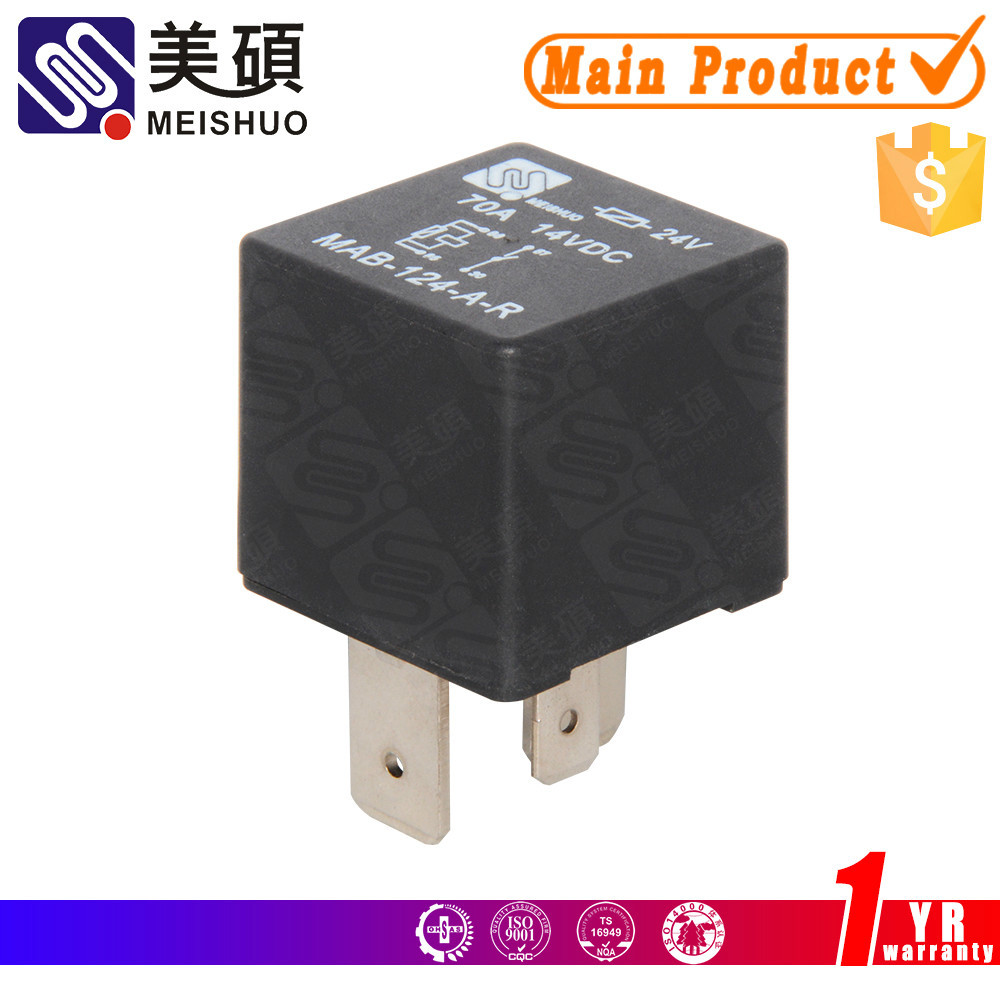

F3	Relay Photo:

















F4	Drawing:







Packing& Application





F5	Package:



-40pcs/box
-200pcs/inner box
-400pcs/carton



F6	Applications:



For truck and car use







Certificates





F7	Meishuo Certificates:













Advantages





F8	Material testers





All the materials are tested before go to workshop



F9	Relay testers





Each relay have to passed 5 times testing before shipping.



1.First testing after assemble

2.Second testing after relay housing closed

3.Third testing after sealing

4. Fourth testing after packing

5. Fifth testing relay when leave Meishuo warehouse





F10	Equipments:





  70A 80A 12V 24V 1A 1C 4pins 5pins QC PCB Car Relays

F11	Meishuo Customers:



3





Company Information





F12	Something About Meishuo:

1) It's a factory, built in Feb.2007

2) Now, employs more than 400 people, enjoyee 12, quality person 22

3) Main products: relays, sockets, connectors, harness, auto parts

4) Production lines: 15 lines

5) Capacity: 400000 pcs per day



F13	Meishuo Factory:





F14	Meishuo Management:







Our Services





F15	What do we serve after sales:

Punctual delivery time:

•We carry out your order into our well-organized production schedule, ensure your punctual delivery time.

•Production report before your order packed.

•Shipping notice and photos sent to you as soon as your order is shipped.

After sales service:

•We pay high attention to your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all parts available in lifetime use.

•We positively revert your complain within 48hours.

Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary documents.

•We are a sales team, with all technical support from engineer team.

Welcome inquiry Us!
