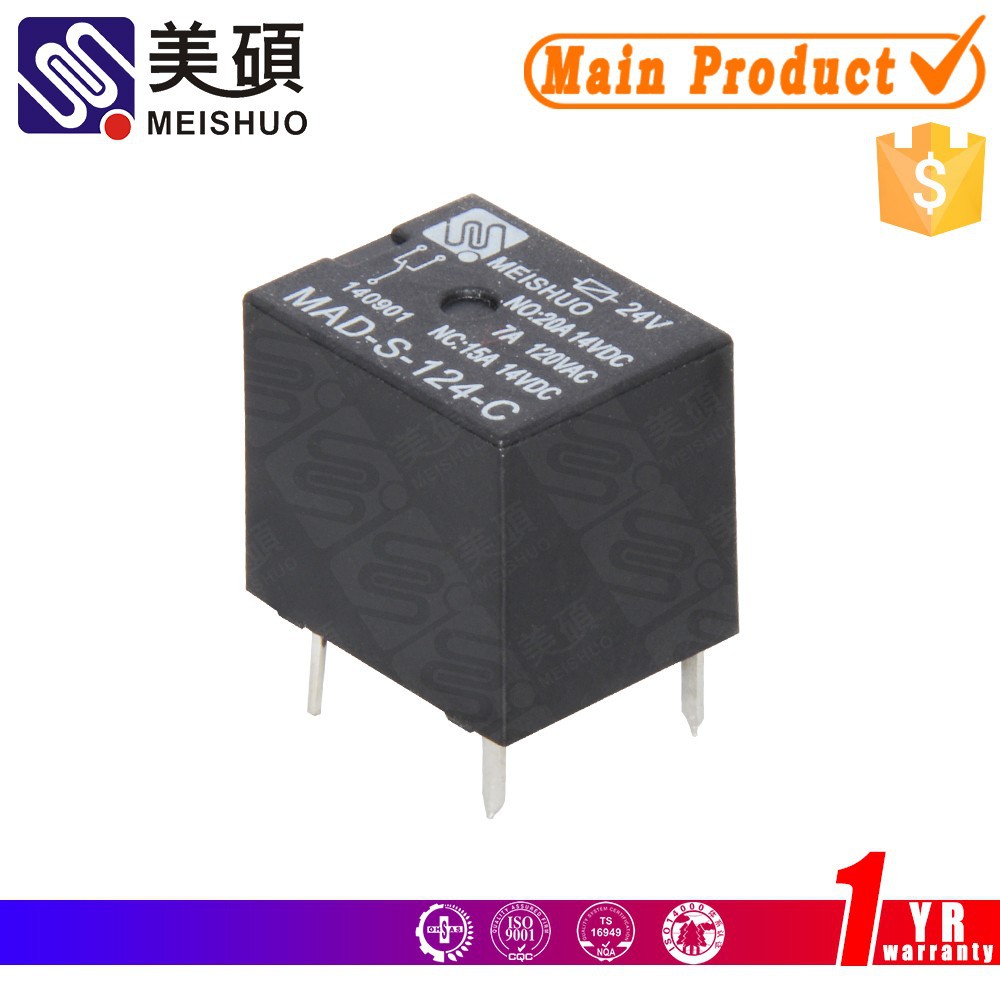

Meishuo MAD - S - 124 - C 0.6W hot sell PCB car relay

Product Attribute:

Supply Ability:80000 Piece/Pieces per Day

Delivery Details:7-30 working days for car relay

Production Description:





Meishuo MAD - S - 124 - C 0.6W hot sell PCB car relay









Related product





Product information



F1	Relay feature:



-samll size, light weight
-Switching capacity up to 20A (at 85.C)
-High resistance to vibration and shock
-Outline dimensions:15.5*12.2*13.6mm

car relay

F2	Specification:



characteristics
Contact Form				1A 1B 1C
Contact material				Silver Alloy
Max.Switching Current				NO/NC:35A/20A
Max.Switching voltage				60VDC
Max.switching power				210W
Min.Contact Load				1A 6VDC
Rating				20A/15A 14VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				500MΩ
Dielectric strength				500VAC
Operate Time				5ms-10ms
Release Time				5ms-10ms
Ambient temperature				-40°C~+85°C
Storage Temperature				-40°C~+85°C
Termination				PCB
Construction				Sealed
Unit Weight				6g
Coil power				0.45w 0.6w 0.8w



F3	Relay Photo:





F4	Drawing:





Packing&Application



F5	Package:



-100pcs/white box

-2000pcs/inner carton

-4000pcs/carton



F6	Applications:



1) for cars: alarm system, door lock, automatic door and window, seat adjust, speed limit signal control, ect…



2) others: motocycle alarm system, electric bike alarm system





Certificates



F7	Meishuo Certificates:



car relay

Advantages



F8	Material testers



All the materials are tested before go to workshop







F9	Relay testers



Each relay have to passed 5 times testing before shipping.



1. First testing after assemble

2. Second testing after relay housing closed

3. Third testing after sealing

4. Fourth testing after packing

5. Fifth testing relay when leave Meishuo warehouse





F10	Equipments:







F11	Meishuo Customers:







Company information



F12	Something About Meishuo:



1) It's a factory, built in Feb.2007

2) Now, employs more than 400 people, enjoyee 12, quality person 22

3) Main products: relays, sockets, connectors, harness, auto parts

4) Production lines: 15 lines

5) Capacity: 400000 pcs per day



F13	Meishuo Factory:





F14	Meishuo Management:





Our services



F15	What do we serve after sales:



Punctual delivery time:

•We carry out your order into our well-organized production schedule, ensure your punctual delivery time.

•Production report before your order packed.

•Shipping notice and photos sent to you as soon as your order is shipped.



After sales service:

•We pay high attention to your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all parts available in lifetime use.

•We positively revert your complain within 48hours.



Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary documents.

•We are a sales team, with all technical support from engineer team.





Welcome inquiry Us!
