MEISHUO MAA1 30A 12V 24V 4Pin 5Pin Automotive Relay

Product Attribute:

Production Description:





    MEISHUO MAA1 30A 12V 24V 4Pin 5Pin Automotive Relay

F1	Relay feature:





-30A switching capability

-Ambient  tempcan reach 125^C

-1 form A&form C contact arrangement

-Dust protected type

-Outline dimensions:23.0*15.5*44.2mm





MEISHUO MAA1 30A 12V 24V 4Pin 5Pin Automotive Relay

F2	Specification:





characteristics<>
Contact Form				1A 1C
Contact material				Silver Alloy
Max.Switching Current				30A
Max.Switching voltage				27VDC
Min.Contact Load				1A 6VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				500MΩ
Dielectric strength				500VAC
Operate Time				5ms-10ms
Release Time				5ms-10ms
Ambient temperature				-40°C~+85°C
Astorage Temperature				-40°C~+155°C
Termination				QC,PCB
Construction				dust type
Unit Weight				22g

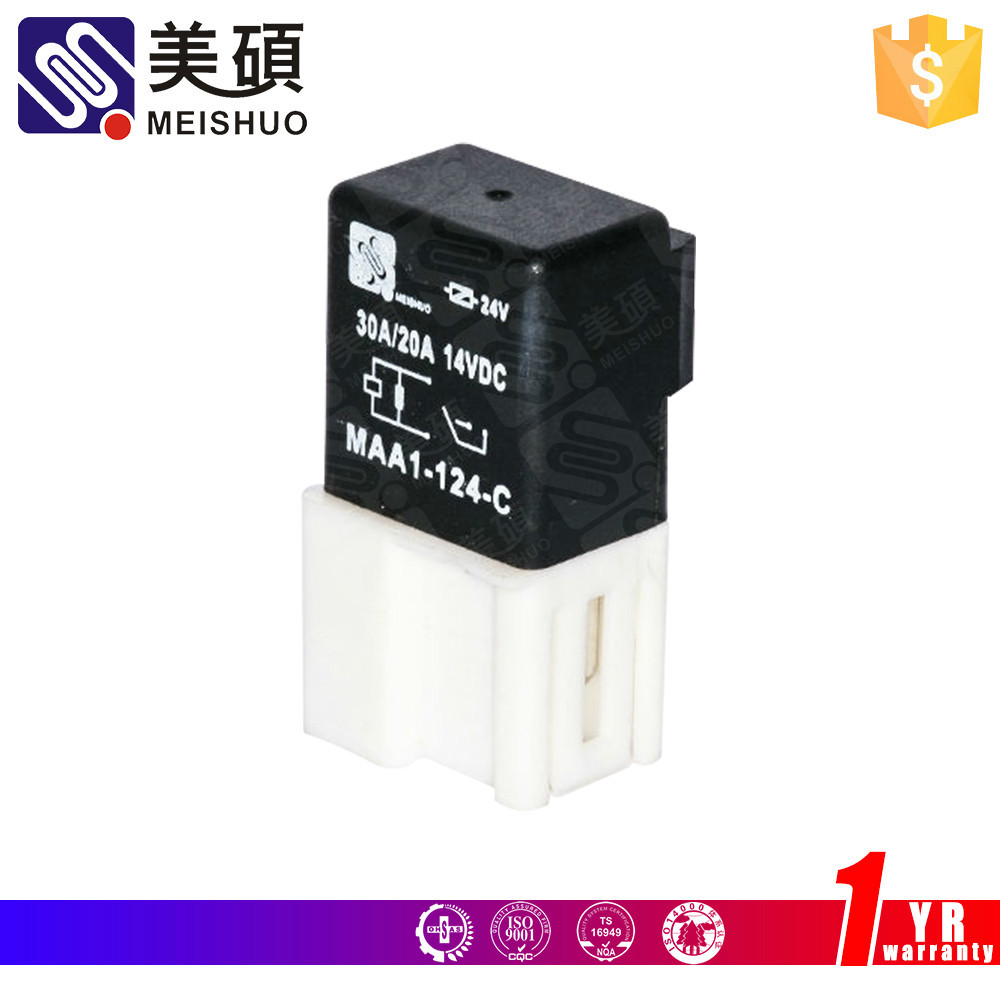

F3	Relay Photo:

























F4	Drawing:





F5	Package:



-25pcs/tube

-1000pcs/carton



F6	Applications:





fan,head light control,oil pumb control,heater,air conditioners,automatic door and window,rain wiper,etc..







F7	Meishuo Certificates:











F8	Material testers





All the materials are tested before go to workshop



F9	Relay testers





Each relay have to passed 5 times testing before shipping.



1.First testing after assemble

2.Second testing after relay housing closed

3.Third testing after sealing

4. Fourth testing after packing

5. Fifth testing relay when leave Meishuo warehouse





F10	Equipments:





    MEISHUO MAA1 30A 12V 24V 4Pin 5Pin Automotive Relay



F11	Meishuo Customers:





F12	Something About Meishuo:

1) It's a factory, built in Feb.2007

2) Now, employs more than 400 people, enjoyee 12, quality person 22

3) Main products: relays, sockets, connectors, harness, auto parts

4) Production lines: 15 lines

5) Capacity: 400000 pcs per day



F13	Meishuo Factory:





F14	Meishuo Management:





F15	What do we serve after sales:

Punctual delivery time:

•We carry out your order into our well-organized production schedule, ensure your punctual delivery time.

•Production report before your order packed.

•Shipping notice and photos sent to you as soon as your order is shipped.

After sales service:

•We pay high attention to your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all parts available in lifetime use.

•We positively revert your complain within 48hours.

Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary documents.

•We are a sales team, with all technical support from engineer team.

Welcome inquiry Us!
