mini power relay 3F 12VDC 1C MPA T72 833H PCB relay

Product Attribute:

Supply Ability:5000000 Piece/Pieces per Year

Delivery Details:10-30 working day for PCB Relay

Production Description:





mini power relay 3F 12VDC 1C MPA T72 833H PCB relay







Related product





Product information



F1	Relay feature:



-15A  switching capability

-1 form A and 1 form C configurations

-Subminiature, standard PCB layout

-Sealed IP67 and flux proof types available

-Environmental friendly product available (RoHS compliant)

-Outline Dimensions: (18.7*15*15.2)mm

PCB relay

F2	Specification:



characteristics
Contact Form				1A 1C
Contact material				Silver Alloy
Contact Resistance				100mΩ(1A 6VDC)
Contact Rating				15A 14VDC/125VAC,10A 30VDC/250VAC
Max.Switching Current				15A,10A
Max.Switching voltage				250VAC/30VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				100MΩ
Dielectric strength				1500VAC/750VAC
Operate Time				≤10ms
Release Time				≤5ms
Ambient temperature				-40°C~+105°C
Termination				PCB
Construction				Sealed
Coil power				0.36w,0.45w,0.6w,0.8w
Certificates				UL,TUV,CQC,ROHS,REACH,TV-5
Unit Weight				10g

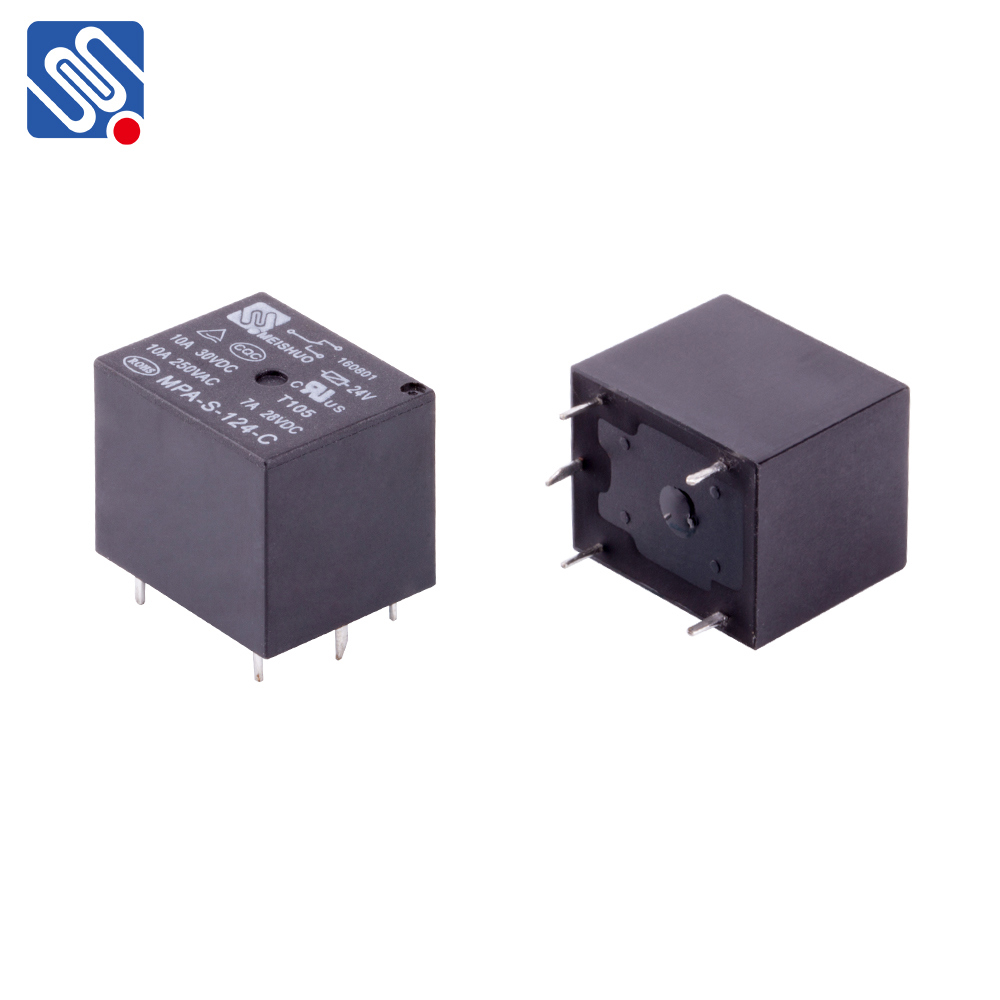

F3	Relay Photo:





F4	Drawing:





Packing&Application



F5	Package:



-100pcs/white box

-1000pcs/inner carton

-2000pcs/carton



F6	Applications:



-home appliances: Ovens, air conditioners, washing machines, cooker hoods, cooking range, etc...

-Others: UPS, car alarm system



Certificates



F7	Meishuo Certificates:



PCB relay

Advantages



F8	Material testers



All the materials are tested before go to workshop







F9	Relay testers



Each relay have to passed 5 times testing before shipping.



1. First testing after assemble

2. Second testing after relay housing closed

3. Third testing after sealing

4. Fourth testing after packing

5. Fifth testing relay when leave Meishuo warehouse





F10	Equipments:







F11	Meishuo Customers:







Company information



F12	Something About Meishuo:



1) It's a factory, built in Feb.2007

2) Now, employs more than 400 people, enjoyee 12, quality person 22

3) Main products: relays, sockets, connectors, harness, auto parts

4) Production lines: 15 lines

5) Capacity: 400000 pcs per day



F13	Meishuo Factory:





F14	Meishuo Management:





Our services



F15	What do we serve after sales:



Punctual delivery time:

•We carry out your order into our well-organized production schedule, ensure your punctual delivery time.

•Production report before your order packed.

•Shipping notice and photos sent to you as soon as your order is shipped.



After sales service:

•We pay high attention to your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all parts available in lifetime use.

•We positively revert your complain within 48hours.



Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary documents.

•We are a sales team, with all technical support from engineer team.





Welcome inquiry Us!
