Product Attribute:
Production Description:
12VDC 5pin 30A automotive relay
1 Relay feature:
-40A switching capability
-1 form A.1form B .1formC.2 form Acontact arrangement
-Various mounting terminations available
-Sealed IP67 and dust cover tyoes available
-Outline dimensions :28.0*28.0*25.0mm
2.Specification:
12VDC 5pin 30A automotive relay
|
characteristics |
|
Contact Form |
1A 1B 1C 2A |
|
Contact material |
Silver Alloy |
|
Max.Switching Current |
NO/NC:120A/45A |
|
Max.Switching voltage |
75VDC |
|
Min.Contact Load |
1A 6VDC |
|
Electrical life |
100000 ops |
|
Mechanical Life |
10000000 ops |
|
Initial insulation resistance |
500MΩ |
|
Dielectric strength |
500VAC |
|
Operate Time |
7ms |
|
Release Time |
5ms |
|
Ambient temperature |
-40°C~+85°C |
|
Astorage Temperature |
-40°C~+155°C |
|
Termination |
PCB,QC |
|
Construction |
Sealed ,dust type |
|
Unit Weight |
34g |

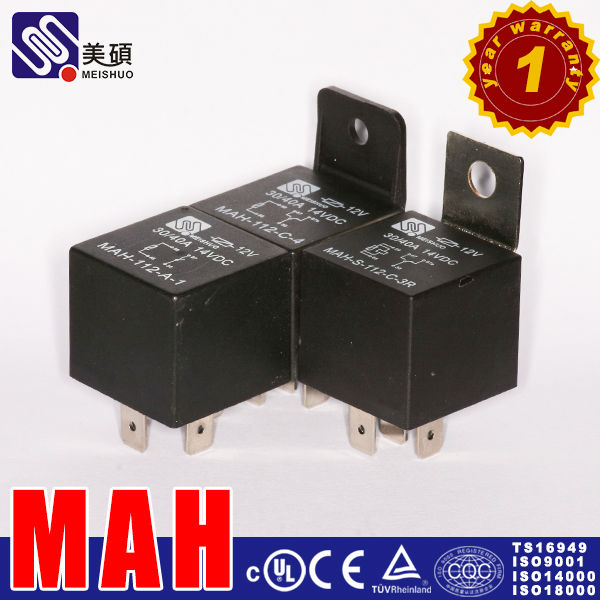

3.Relay Photo:
4.Drawing:
5.Package:
-50pcs/tray
-500pcs/carton
6.Applications
- fog light,head light,battery control,oil pumb control,fan control,air conditioner,harness -
7.Quality Department:
-Materials coming must pass extremely strict testing
-Ready products 100% tested
-Products can not shipping out till 100% passed MS testing.
8.Equipments:
Meishuo Customers
Meishuo 2014 Exhibitions information:
Something About Meishuo
1)It's a factory,built in Feb.2007
2)Now, employs more than 400 people,enjoyee 12,quality person 22
3)Main products: relays,sockets,connectors,harness, auto parts
4) Production lines:15 lines
5)Capacity: 400000 pcs per day
