Product Attribute:
Type:LED BEACON
Voltage:DC 10-30V
Lamp Type:LED
Certification:ECE R65 TA1 00 0043
Car Make:ALL
Place of Origin:Zhejiang China (Mainland)
Brand Name:911SIGNAL
Model Number:FD24-(AS,AF,AM,AT) amber led beacon
Warranty:2 Years
COLOR:AMBER
LED:24Pcs 1W LED
Max Power:30W
Waterproof:IP68
Flash patterns:8(including rotating)
Production Description:
Technical Parameter
| Model | FD24-(AS,AF,AM,AT) |
| Light Characteristics | LED Power | 24PCS 1W LED |
| LED Lifespan | 100,000H |
| Flash settings | 1-4HZ |
| Electrical Characteristics | Voltage | DC 10-30V |
| Max Power | 30W |
| Physical Characteristics | Colour Available | amber |
| Ambient temperature | -30--+70鈩?/td> |
| Mounting | Four kinds of installation |
| Waterproof | IP68 |
| Flash patterns | 8(including rotating) |
| Meet and Exceeds | ECE R65 TA1 00 0043 |

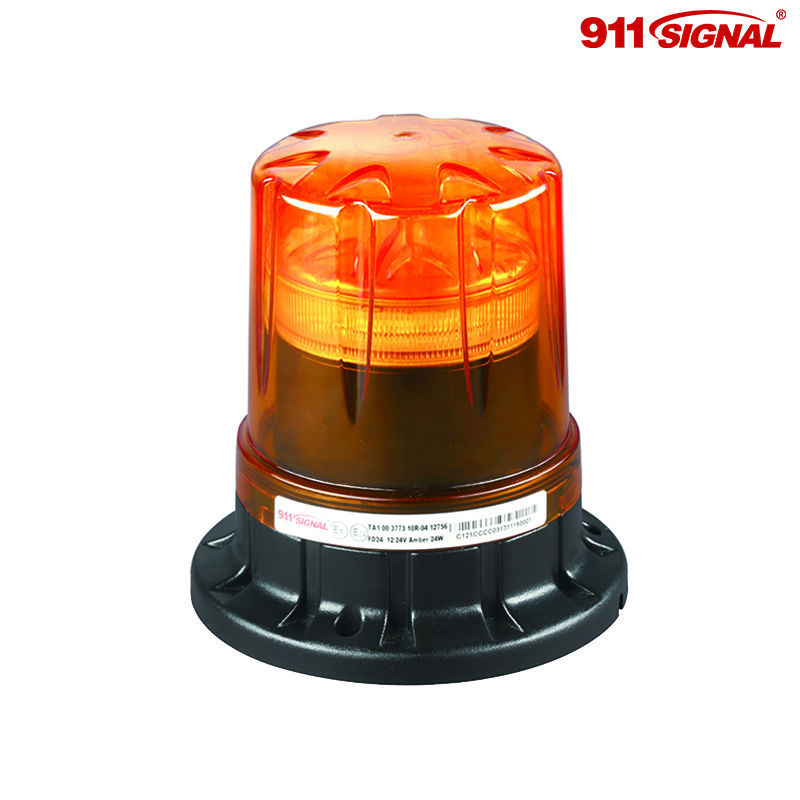

Product DescriptionPatented in Europe and the USA
2014 has seen the introduction of 911SIGNAL’s amber-color FireDragon beacon, a high cost-performance and energy-saving beacon light for use atop maintenance or engineering vehicles, or on construction equipment such as trucks, bulldozers, or excavators.
They are also used on fixed plant equipment or fire, safety, or control panel alarms. FD24 beacons have eight flash patterns including rotating mode, and can be linked to each other and synchronized.
Delivering high cost-value while maintaining reliability has mainly come through close work with supply partners to get tailored LEDs for this new design, while both retaining and adding unique features.
One of these characteristics is staunch dual-protection water-resistance, which is dealt with in two ways. Water infiltration of the larger unit is prevented through seal loops in the base, which also has specially placed holes to dissipate any vapors that do happen to occur.
Each individual LED module is also encapsulated for localized internal waterproofing.
There are four installation options for the FD24, including our unique “Flexi Din” mounting to help prevent breakage in the event that this top-side light is struck by a tree branch, fork-lift, or other object. The Flexi Din mount allows the base to bend and shift slightly to the side if the light is struck or pushed.
Stability is also improved with the tooth-structure of the lampshade and six internal screws in the base. Other install methods offered are magnet, single-point, and three-point.
