Product Attribute:
Type:LED WARNING BAR
Voltage:DC 10-30V
Lamp Type:warning light
Certification:ECE R65 XB1 XA1,ECE R10, SAE
Car Make:ALL
Place of Origin:Zhejiang China (Mainland)
Brand Name:911 signal
Model Number:C4-8 led traffic advisor
Warranty:2 Years
size:36.0 "Long x 2.2" Wide x 1.0"High
color:red, blue, white and amber and combination color
LED Power:32PCS 3W LED
Max Power:72W
Flash patterns:26
Mounting:T-Shaped Screws or Bracker
LENS:Reflex
Waterproof:IP67
Production Description:

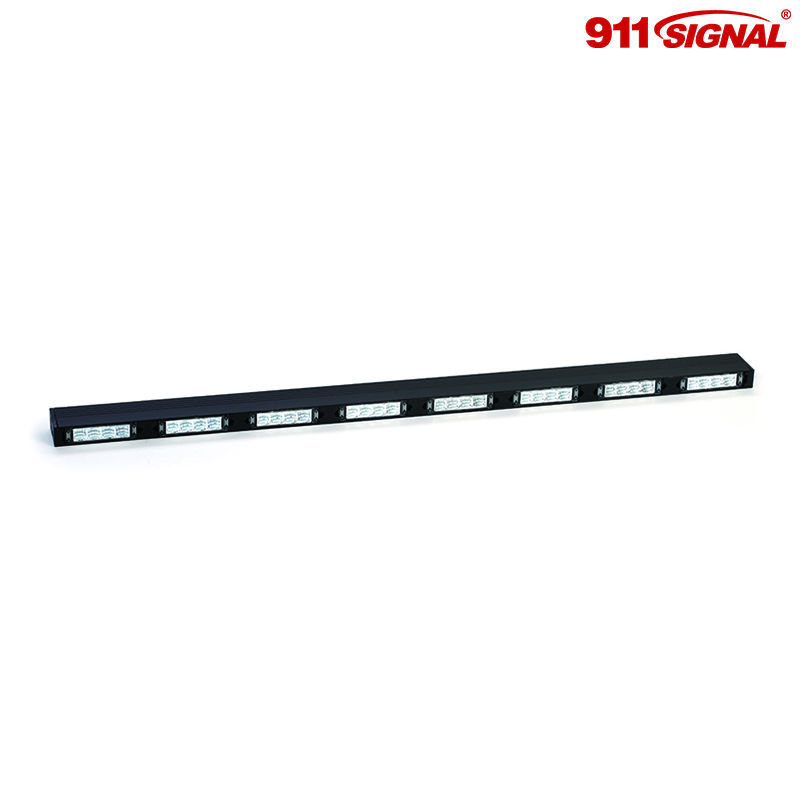

Emergency Vehicle Caution Light Stick:
Technical Parameter
| Model | C4-8 |
| Light Characteristics | LED Power | 32PCS 3W LED |
| LED Lifespan | 100000H |
| Flash settings | 1-4HZ |
| LENS | Reflex |
| Electrical Characteristics | Voltage | DC 10-30V |
| Max Power | 72W |
| Physical Characteristics | Colour Available | red, blue, white and amber and combination color |
| Ambient temperature | -20--+65鈩?/td> |
| Mounting | T-Shaped Screws or Bracker |
| Flash patterns | 26 |
| | Waterproof | IP67 |
| Meet and Exceeds | ECE R65 XB1 00 0035
ECE R65 XA1 00 0036,
ECE R10 04 12754,
SAE-10-W-1 |
| Product Dimension | 91cm L x 5.6cm W x 2.5cm H(36.0 "L x 2.2" W x 1.0"H) |
| Accessories | 3 meters 8 core cable ; 2 pieces T-shaped screws |
FeaturesLED Strobe Lightheads
*Internal self-contained electronics.
*Bulit-in 26 selectable flash patterns.
*Unique design of shrapnel, Easy to maintenance.
*Lens: Reflectors Lens
*Waterproof to IP67 standards.
*Black Aluminum enclosure, to ensure good cooling effect.
*Installation: Screw or T-shaped screws or Bracket
Product DescriptionPatents held in the USA and Europe
In 2011 911Signal owner Jack Yu had the notion to fuse together two ideas: offer fewer individual
Skyline lightbar modules together to better meet the demands of certain clients, but also make them
easier to install or remove for reconfiguration.
Our C4 Dashboard Lights, available in four different
sizes, are for warning and traffic direction indication use on big trucks and SUVs. They’re just as
powerfully productive as the namesake plastic explosive is destructive.
Our hard work to keep you from having to payed off in 2012 with our patented snap joints, leading us to nickname these units “shrapnel” as they seemingly fly out and back in.
This also lowers the inventory and labor cost of distributors, who can offer modules for maintenance instead of hiring repairers.
Each module has high luminance through super-bright Reflex lenses and 3-watt LEDs that are
rated for 100,000 hours of use.
What’s more, high-end IP68 waterproofing of each individual module has been achieved after testing
more than 100 different glues, altering our moulds, and increasing the use of breather membranes.
In so doing, we have realized the perfect combination of waterproofing, intensity, and adaptability to
extreme weather.
Other tremendous features common to all models include a slim profile of just 1” height, up to 43 flash patterns, a two-year guarantee, and dual color LEDs .
All this at a compelling value and easy installation with brackets or screws, depending on your choice between two different side covers.
