Product Attribute:
Type:Headlight
Voltage:10-30V
Lamp Type:LED
Certification:EMC
Car Make:ALL
Place of Origin:Zhejiang China (Mainland)
Brand Name:911 signal
Model Number:ANT6-6 LED Hideaway Strobe Light
Warranty:2 Years
Dimensions:1.5"L x 1.0"D
LED Power:6PCS 3W LED
Max Power:9W
Colour Available:Blue,amber ,Red,White,Green
Mounting:Surface mount.Inside of headlight
Flash patterns:22
Production Description:
Technical Parameter
| Model | ANT6-3,ANT6-6 |
| Light Characteristics | LED Power | ANT6-3:3PCS 3W LED ANT6-6:6PCS 3W LED |
| LED Lifespan | 100,000H |
| Flash settings | 1-4HZ |
| Electrical Characteristics | Voltage | DC 10-30V |
| Max Power | 9W |
| Physical Characteristics | Colour Available | Blue,amber ,Red,White,Green |
| Ambient temperature | -20--+65鈩?/td> |
| Mounting | Surface mount.Inside of headlight |
| Flash patterns | ANT6-3:19 ANT6-6:22 |
| Meet and Exceeds | EMC |
| Product Dimension | 3.8cm D x 2.5cm H(1.5"D x 1.0"H) |
Product Description

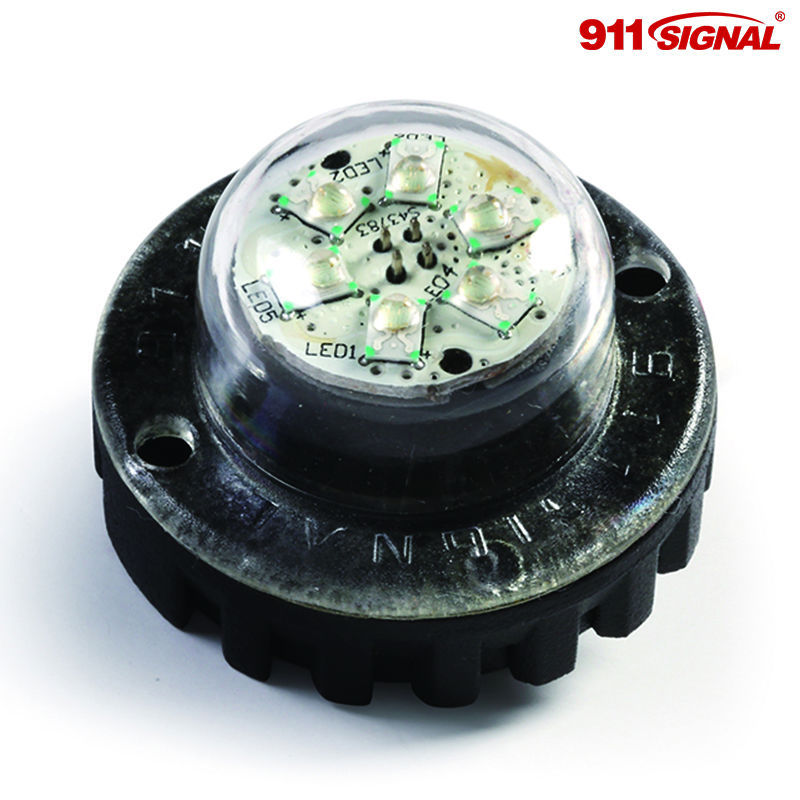

Our aptly named ANT6 Hideaway Lights have been designed for hiding anywhere, ready to jump into action anytime you need them.
Anywhere means on any surface, even inside the headlights of any vehicle! It helps that they’re ultra small and light-weight. ANT6 lights are also highly versatile and feature a bright, hemispheric illumination pattern.
There are two models to choose from, optional with A/R/B/W in 3Watt LEDs. Model ANT6-3 has three same-color LEDs and 19 flash patterns, while ANT6-6 can be multi-chromatic and has 22 flash patterns.
3 colors covers are available. Despite great output, thermal dissipation is optimized through the use of an advanced heat management system, silicon gel, and an aluminum base.
Because all components are encapsulated, the ANT6 is waterproof to IP67. It also means it can be installed in one shot with no separate components to affix: surface mounting, mounted with brackets, or placed directly inside a headlight van.
Incorporating surge protection, rated for use between -20鈩?/span> and +65鈩?/span> and more than 100,000 hours, the ANT6 is extremely reliable - all told making it a fantastic value and a go-to solution for any public service vehicles.
