Product Attribute:
Type:LED Lightbar
Voltage:10-33V
Lamp Type:LED
Certification:ECE R65 0053
Car Make:ALL
Place of Origin:Zhejiang China (Mainland)
Brand Name:911Signal
Model Number:SKYLINE AIR led lightbar
Warranty:2 Years
Colour Available:red, blue ,amber and combination color
Waterproof:IP68
Flash settings:1-4HZ
Housing Materials:Plastic
Production Description:
Technical Parameter
| Model:Item | SKY AIR20:011801; SKY AIR29:011810 SKY AIR38:011820; SKY AIR48:011830 SKY AIR56:011840 |
Light Characteristics | LED Power | SKY AIR20:40PCS 3W; SKY AIR29:56PCS 3W; SKY AIR38:72PCS 3W; SKY AIR48:88PCS 3W; SKY AIR56:104PCS 3W |
| Lighting Option | High-brightness LED(all heads);Reflector Style |
| LED Lifespan | 100000H |
| Flash settings | 1-4HZ |
| Electrical Characteristics | Voltage | DC 10-33V |
| Physical Characteristics | Colour Available | red, blue ,amber and combination color |
| Ambient temperature | -30--+70 鈩?/span> |
| Waterproof | IP68 |
| Mounting | SKY AIR20/29: Magnet
SKY AIR38/48/56: Gutter / Roof Rail / Roof One Point / Direct/Bolt(Optional) |
| Flash patterns | SKY AIR20:25 SKY AIR29/38/48/56:29 |
| Product Dimension | SKY AIR20:20"L x 9.8"W x 1.8"H(50.6cm x 25cm x 4.5cm) SKY AIR29: 29"L x 9.8"W x 1.8"H(74.0cm x 25cm x 4.5cm) SKY AIR38: 38"L x 9.8"W x 1.8"H(97.4cm x 25cm x 4.5cm) SKY AIR48: 48"L x 9.8"W x 1.8"H(120.0cm x 25cm x 4.5cm) SKY AIR56: 56"L x 9.8"W x 1.8"H(144.2cm x 25cm x 4.5cm) |
| Meet and exceeds | ECE R65 0053 |
| WIRE | SKY AIR20/SKY AIR29: 3M length with A13-163 cigarette plug SKY AIR38/SKY AIR48/SKY AIR56: 5M length of 8 core wire |
| Housing Materials | Plastic |
| Optional controller | BR9000 |
Product Description

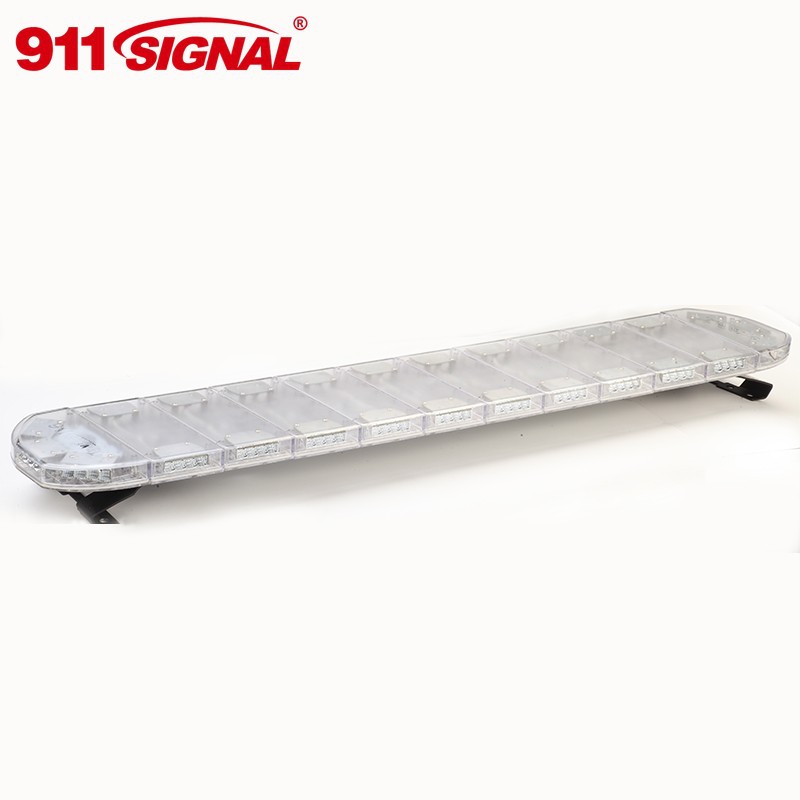

The latest version of 911Signal’s Skyline LED lightbar, the Skyline Air, is currently in the final stages of development and being readied for launch in the spring of 2015. The Skyline Air is the thinnest and lightest LED warning signal lightbars on the market today, and offers three fantastic innovations that ultimately allow for greater value.
First is the novel use of four aluminum-alloy screws to act as heat sinks while simultaneously securing the base to the lightbar housing. Heat generated by the LED modules is drawn into the screws and transferred to the aluminum base, where it is then dissipated by air passing underneath the lightbar. This allows for luminance to be maximized throughout the product’s usable life without heat-related, expensive compromises. 911Signal is currently applying for patents related to this unique feature.
The second innovation is making each Skyline Air lightbar housing completely plastic and more adaptable by giving each module its own encapsulated plastic housing. This greatly reduces cost and weight, shortens lead times, increases flexibility of use and allows for mass production - all without sacrificing either performance or reliability. What’ s more, assembly and configuration changes are made even easier.
Last but by no means least is the addition of two screw holes atop the light bar on each end. These holes easily provide for the mounting of a camera, work light or traffic light on top of the unit without impacting the lightbar function or adding stress.
Dual-waterproofing is also on order, with each module including a gas-permeable membrane and meeting IP68 inside and out. With a sleek, asymmetric front-sloping design, multiple color options and our standard two-year warranty, the Skyline Air is soon to be an unparalleled choice in the field.
