Product Attribute:
Type:Headlight
Voltage:DC 10-33V
Lamp Type:LED
Certification:ECE R65 XA1 XB1,SAE J845,Class 1
Car Make:All
Place of Origin:Zhejiang China (Mainland)
Brand Name: 911signal
Model Number:X6 bumper light
Warranty:2 Years
LED Power:6PCS 3W LED
spread model:Smallest and 180°
installation:Available Surface / Bracket mount
Patterns:19 Flash Patterns
Lens:TIR
Waterproof:IP67
Flash settings:1-4HZ
Production Description:
Technical Parameter
| Model | X6 |
| Light Characteristics | LED Power | 6PCS 3W LED |
| LED Lifespan | 50000H |
| Flash settings | 1-4HZ |
| CREE |
| Lens | TIR |
| Electrical Characteristics | Voltage | DC 10-33V |
| Max Power | 18W |
| Physical Characteristics | Colour Available | Amber, Blue, Red, White and the combination color. |
| Ambient temperature | -20--+80鈩?/td> |
| Waterproof | IP67 |
| Mounting | Surface mount;Bracket mount |
| Flash patterns | 19 |
| Meet and Exceeds | ECE R65 XA1 0044,
ECE R65 XB1 0045,
SAE J845,Class 1,
ECE R10 041605 |
| Product Dimension | 9cm L x 2cm W x 1.8cm H(3.5"L x0.8"W x 0.7"H) |
Product Description

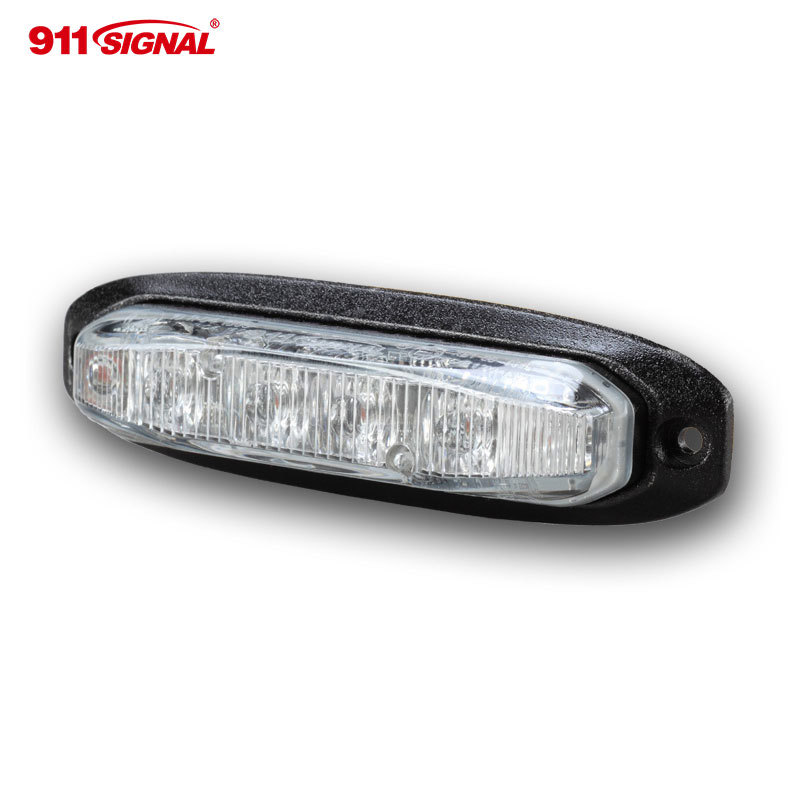

911Signal is at the leading edge of warning-light design and manufacturing, and our hard work and competence definitely show in our latest product. The X6 LED Strobe Lighthead has been created to give top-notch performance when in use, and maximum discretion when at rest. Thousands of man-hours were poured into the X6 to give it an extremely narrow and tiny profile - just 0.7” high, 0.79” wide, and 3.5” lon9g! All this while maintaining multi-function usability and 18 watt, 180-degree high output illumination through six (6) CREE LEDs and a patented TIR lens. Breakthroughs to achieve these include the addition of two fill-in lights with TIR lenses to increase intensity, and four lamp cups to deal with condensation.
So what else makes the X6 so great and took so much time? Take the water-proofing features for example. It’s IP68-grade waterproof, but we’ve gone beyond that to make a gas-permeable membrane to disperse water vapor - suitable for high altitude use. Power stability? DC 10-33 volts with reverse connection and dynamic electrical surge protection. Heat? Ambient temperature -40 ~ +65 and a specialized columnar design for maximum heat dissipation. Flash? 19 E-Mark & SAE certified patterns, some even meeting flash standard ECE-R65 (120-240 flashes per minute, within 2-4 HZ frequency), with both synchronizing and alternating functions available.
With amber, red, blue, white and combination color options, brackets for mounting anywhere and a rating for 50,000+ hours of operation, the X6 marks the top choice police, fire, transport, safety, roadside service or any other use.
