JAC Car Manual Transmissions-MF70B Series (FWD Type)

JAC Car Manual Transmissions-MF70B Series (FWD Type)

Typical Clients:  JAC, Chert

OEM No/Model:  MF70B

Market Type:  OE Market

Core Components:  Gear, Shaft, Housing, Synchronizer

Main Raw Material:  Steel, Aluminum

Designed Capacity:  200,000 PCS Annually

Available Capacity:  200,00 PCS Annuallly

Place of origin:  Jiangxi, China

Price Terms:  CIF

Other Price Terms:  FOB

Typical Clients:

JAC, Chert

Production Description:

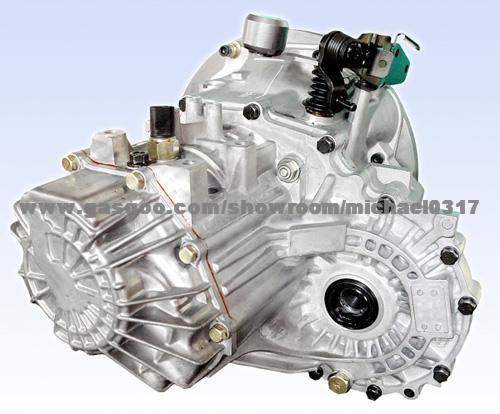

The transmission is one 5-speed manual horizontal type, which is developed and manufactured independently. It can be used on medium & high class passenger cars, etc.
The transmission is a full synchronizer manual transmission with five forward speeds and one reverse speed. Synchronizers are applied to all speeds.

 Gear ratio MF70B MF70B3 MF70B4 MF70B5
1st gear 3.615 3.615 3.615 3.615
2nd gear 2.053 2.053 2.053 2.053
3rd gear 1.37 1.393 1.393 1.393
4th gear 1.031 1.031 1.031 0.970
5th gear 0.837 0.837 0.837 0.837
Rev 3.25 3.25 3.25 3.25
Final Drive 3.842 4.294 4.529 4.056
Rated input torque 180~200 N.m
Shifting mode 5-speed manual type
Central distance 70 mm
Weight 36.5 Kg
Lubricating oil 75W/90 GL-4 about 1.9L
Application Passenger cars (MPVs, SUVs, etc), commercial cars
