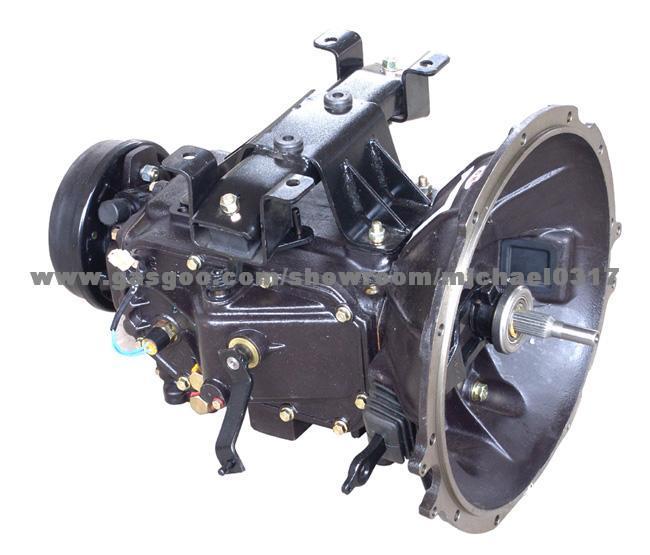

ISUZU Truck Transmissions-LC5T88

ISUZU Truck Transmissions-LC5T88

Typical Clients:  JAC, ISUZU, JMC, Foton

Market Type:  OE Market

Core Components:  Gear, Shaft, Housing, Synchronizer

Main Raw Material:  Steel, Aluminum

Designed Capacity:  200,000 PCS Annually

Available Capacity:  200,00 PCS Annuallly

Place of origin:  Jiangxi, China

Price Terms:  CIF

Other Price Terms:  FOB

Typical Clients:

JAC, ISUZU, JMC, Foton

Production Description:

The transmission has five forward speeds and one reverse speed. Synchronizers are used to all speeds, all gears are helical gears constant mesh.

 Gear ratio LC5T88
1st gear 5.594
2nd gear 2.814
3rd gear 1.660
4th gear 1.000
5th gear 0.794
Rev 5.334
Rated input torque 225 N.m
Central Distance 88 mm
Shift model Cable shift (remote control)
Weight 75 Kg
Lubricating oil 85W/90 GL-4, 80W/90 GL-4 (In winter)
