Product Attribute:
Supply Ability:3000000 Piece/Pieces per Month push button waterproof 110v rotary switch
Delivery Details:2 weeks
Production Description:

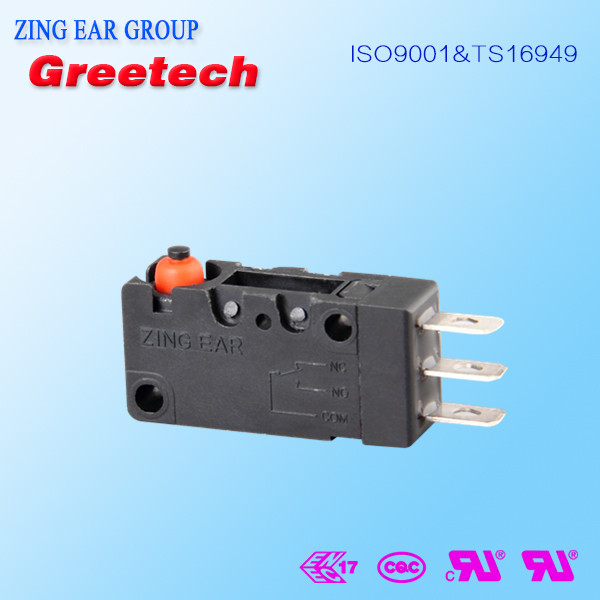

40t85 limit sealed mini micro switch t85 5e4 with 12v 5a 250v t85 5e4
Product Description
Feature
-Designed for water and dust tight(IP67)
-Tight Structure, Small Contact Gap Snap Action, High Sensitivity
-Global safety approvals
-Long life and High Precision and Reliability
-Variety of levers
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Max Approved Current at ENEC/UL us 10A
Drawing
Operating Parameters
Parameters
|
|
W1 |
ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 |
|
W2 |
ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 |
|
W3 |
ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85 |
|
Operating Frequency |
|
10~30 times/min |
|
Mechanical |
times/min |
|
Contact Resistance(intial value) |
with terminal |
50mΩMax |
|
with wire |
100mΩ Max(Depends on the length of the wire) |
|
Insulation resistance |
|
at 500VDC,100MΩ Min. |
|
Dielectric Strength |
Between terminals |
AC 1000V 50-60Hz 1min |
|
Between terminals and housing |
AC 1500V 50-60Hz 1min |
|
Storage Temperature |
|
-40°C~+85°C |
|
Strorage Humidity |
|
85%RH Max |
|
Protection grade |
With terminal |
IEC IP67(Terminal not included) |
|
With wire |
IEC IP67 |
|
Electric-shock safeguard grade |
|
Class I |
|
PTI |
|
250 |
|
Life |
E-life |
2E4~10E4 cycles(depends on P/Ns) |
|
M-life |
over 1000,000cycles(60cycles/min) |
|
Weight |
|
Approx.7g(with terminal and without lever) |
Application
-Elctronic Devices -Electric Tooth Brush
-Automatic Equipments -Auto Electronics
-Agriculture Equipments -Home Appliance
-Office Equipments
Related products
Packaging & Shipping
Packing list
|
No. |
Greetech Product |
Inner Box |
Shipper Carton |
MPQ |
|
Inner box size(mm) |
Q'ty/ |
Total GW(kgs) |
Carton size(mm) |
Q'ty/ctn |
Total GW(kgs) |
MOQ |
L/T |
Total GW(kgs) |
|
(pcs) |
(pcs) |
(pcs) |
(Days) |
|
1 |
G3 series(terminal type) |
310x215x135 |
3,360 |
3.9 |
440x325x300 |
13,440 |
15.3 |
1,000 |
15 |
1.2 |
|
2 |
G5 series |
310x250x120 |
600 |
5.5 |
330x270x270 |
1,200 |
10.8 |
1,000 |
15 |
9 |
|
3 |
G5W11 series |
310x215x135 |
200 |
4.8 |
440x325x300 |
800 |
19.2 |
100 |
10 |
2.5 |
|
4 |
G6 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
5 |
G9 series(terminal type) |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
6 |
G91 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
7 |
G10 series |
290x192x40 |
600 |
1.3 |
400x305x220 |
6,000 |
12.5 |
1,000 |
15 |
2.7 |
|
8 |
GT02 series |
210x155x55 |
300 |
1.2 |
440x325x285 |
6,000 |
12 |
6,000 |
15 |
12 |
|
9 |
GPS100 series |
/ |
/ |
/ |
330*270*270 |
60 |
6.1 |
60 |
10 |
6.1 |
|
10 |
Switch with wire leads |
310x215x135 |
100 |
1.8 |
440x325x300 |
800 |
14.5 |
800 |
20 |
14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
