Product Attribute:
Supply Ability:3000000 Piece/Pieces per Month Electric car window switch delivery on time
Delivery Details:2 weeks
Production Description:

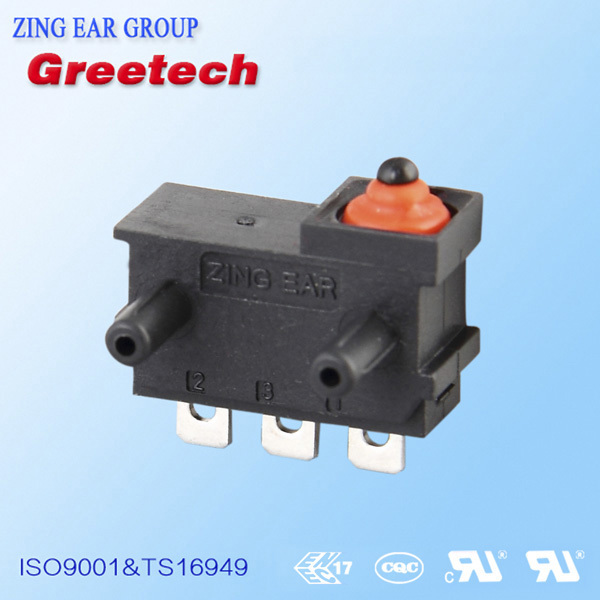

0.1A 125/250VAC SPDT electric car window switch
Product Description
Feature
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
Drawing
Operating Characteristics
Parameters
|
Rating |
0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5. |
|
Operating Frequency |
Electrical |
0.1A-120/3A-10~30 cycles/minute |
|
Mechanical |
120 cycles/minute |
|
Contact Resistance(Initiative) |
|
100mΩ Max |
|
Insulation Resistance(at 500VDC) |
|
100MΩ Min |
|
Vibration durability |
|
10~55Hz, move 0.75mm(p-p) |
|
Dielectric Strength |
|
500VAC (50~60Hz) |
|
Storage Temperature |
|
-40鈩?span style="">-+85鈩?/span> |
|
Storage Humidity |
|
85% RH Max |
|
Service Life |
Electrical |
6,000~500,000/cycles(Depend on part number) |
|
Mechanical |
Min.500,000/cycles |
Application
-Car -Electric Tooth Brush
-Air-conditioner -Toys
-Communication -Home Appliance
-Motor Control
Related products
Packaging & Shipping
Packing list
|
No. |
Greetech Product |
Inner Box |
Shipper Carton |
MPQ |
|
Inner box size(mm) |
Q'ty/ |
Total GW(kgs) |
Carton size(mm) |
Q'ty/ctn |
Total GW(kgs) |
MOQ |
L/T |
Total GW(kgs) |
|
(pcs) |
(pcs) |
(pcs) |
(Days) |
|
1 |
G3 series(terminal type) |
310x215x135 |
3,360 |
3.9 |
440x325x300 |
13,440 |
15.3 |
1,000 |
15 |
1.2 |
|
2 |
G5 series |
310x250x120 |
600 |
5.5 |
330x270x270 |
1,200 |
10.8 |
1,000 |
15 |
9 |
|
3 |
G5W11 series |
310x215x135 |
200 |
4.8 |
440x325x300 |
800 |
19.2 |
100 |
10 |
2.5 |
|
4 |
G6 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
5 |
G9 series(terminal type) |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
6 |
G91 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
7 |
G10 series |
290x192x40 |
600 |
1.3 |
400x305x220 |
6,000 |
12.5 |
1,000 |
15 |
2.7 |
|
8 |
GT02 series |
210x155x55 |
300 |
1.2 |
440x325x285 |
6,000 |
12 |
6,000 |
15 |
12 |
|
9 |
GPS100 series |
/ |
/ |
/ |
330*270*270 |
60 |
6.1 |
60 |
10 |
6.1 |
|
10 |
Switch with wire leads |
310x215x135 |
100 |
1.8 |
440x325x300 |
800 |
14.5 |
800 |
20 |
14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business Partner
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
