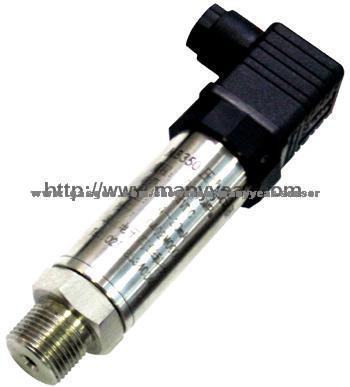

Pressure Transducer Mpt213[e-Catalog]

model

MPT213Common pressure sensor and pressure transducer

Apply: Apply to measuring and controlling in oil, Metallurgy, Electric power, Water conservancy and aviation industry.

characteristic:

Silicon tube or silicon core and AMP, Small dimension, High precision, Wide capability, High stability, Anti- Jamming.

Technology parameter:

capability range

0～0. 6～200Mpa

pressure type

Gauge pressure、 Negative pressure、 Absolutely pressure

signal output（mA/ V）

pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure sensor: 1mV/ V; 2mV/ V, 2. 5mV/ V , 3. 3mV/ V ,

Precision（%FS）

0. 3; 0. 5

Full load output（mV）

30～60- 120

Zero point output（mV）

≤ 20

sluggish repeat (nor- Linearity)（%FS）

  ≤ 0. 1， ≤ 0. 2，  ≤ 0. 3

excursion at zero point（%FS/ 4h）

≤ 0. 1， ≤ 0. 2，  ≤ 0. 3

temperature excursion(zero & Delicacy)（%FS/ ℃）

≤ 0. 01，  ≤ 0. 02，  ≤ 0. 03

long term stability（%FS/ Year）

≤ 0. 1；≤ 0. 3

execute voltage （V）

pressure transducer: 24VDC (9~36)VDC; Pressure sensor: 10VDC(6~12V)

temperature compensate （℃）

- 20～＋60

environment temperature （℃）

- 20～＋85

Overload （%）

150

load resistance （Ω ）

R=（U- 12. 5）/ 0. 02- RD         U=POWER SUPPLY，RD=Wire resistance

response time（ms）

≤ 1

measuremedium

Nor- Causticity Gas

Film

NA

House

1Cr18Ni9Ti   Or  Aluminum alloy

Connect thread

M20× 1. 5 or  Order by customer

explosion proof grade

ExibIICT6

water proof grade

IP65
