General

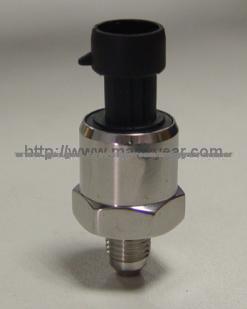

Model：MPT321- 230 Name：Refrigeration Pressure Transmitter Features：Range: 0- 5BAR?350BAR accuracy: 0. 5% FS; 1% FS
Applications Laboratory test equipment Agricultural chemical equipment Refrigeration or HVAC system Hydraulic System process monitoring Steam pressure vessel monitoring Coolant pressure monitoring
Technical specifications
Range:
0- 1BAR, 0- 350BAR
General accuracy:
0. 5 ％FS; 1 ％FS
Reliability:
0. 05 ％FS
Nonlinear:
0. 02 ％FS
Output signal:
4 - 20MA， 0 - 5V， 0. 5- 4. 5V , 1 - 5V
Supply voltage:
24 （ 8 - 36V）DC; 5VDC; 12VDC
Operating temperature range:
- 40 ℃ ? 125 ℃
Compensation temperature range:
10 ? 70 ℃ (Standard Compensation)
Stress overload：
200 ％ FS
Case Material:
Brass or stainless steel optional
Electrical connections:
Three core plug- Ins or other special connector
Pressure connection:
G1/ 4 ， 1/ 4NPT ， 1/ 8NPT , 7/ 16- 20UNFCustomized upon request
