Product Attribute:
Power:7w
Applicationt:
Truck, Bus, Trailer, long vehicle
Production Description:
Auto Reversing System
Auto Rear View system
Auto Vision Reversing System
Model : LW- 70A
Competitive price at good quality!
This Rear view system can offer a new solution and experience for drivers. Driver can check the back situations through the camera which mounted on the rear of vehicle, And need not looking back and forth.
Gigantic Vehicle camera is designed for long- Vehicle and trucks/ Bus, Can be instaled on the top. The IR LEDs can offer clear sight at night, And big size TFT- LCD will offer wider pictures for drivers.
This Video backup system make the reverse parking easy and safe, Eapecially for new driver or a complicate road surface.
Specifications:
Camera:
(1)1/ 4" Sharp Color CCD sensor
(2)TV system : PAL/ NTSC
(3)Resolution: 420 TV lines
(4)With 18 IR LED light , Night vision distance up to 10- 15 meters
(5)Self- Sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: - 20~ +70 degrees , RH95% Max.
(9)Storage temperature: - 40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, Silver/ Black color selectable
7 inches TFT- Monitor:
(1)7inches new AU TFT- LCD panel.
(2)Stand- Alone monitor (16: 9) display.
(3)400 R. G. B x234 dots
(4)System: PAL/ NTSC auto switching.
(5)Video input V1/ V2.
(6)Power supply: 12VDC
(7)Power consumption: Less than 7W
(8)Image Up/ Down, Left/ Right functions.
(9)Suitable for camera/ DVD/ VCD player.
(11)Video signal disappear, Display blue screen.
(12)Card style remote control.
(13)Operating temperature: - 20 ~ +50 degrees.
(14)Storage temperature: - 40 ~ +65degrees.

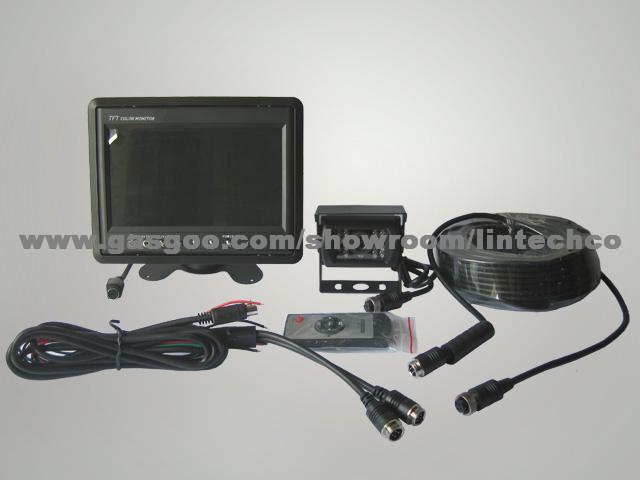

Standard Packing Contents:
- - 7inches TFT monitor x 1pc
- - Monitor remoted control x 1pc
- - 1/ 4" SHARP CCD Camera x 1pc
- - Camera screws x 1kit
- - 2meter monitor cable x 1pc
- - 20meter watterproof extend cable x 1pc
- - Products data sheet x 1pc
