Product Attribute:
Power:5w
Applicationt:
Trailer, long vehicle
Production Description:

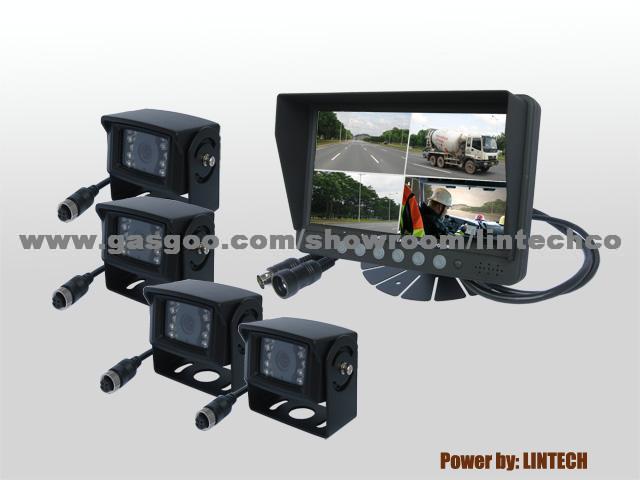

7 inches Quad LCD monitor reversing system
Quad LCD monitor / Split LCD monitor rear view system
LW- 070Q- 4C
DESCRIPTIONS:
MONITOR:
- - Built- In quad control box function
- - Support four camera inputs
- - With remote controller
- - Single View/ Split view/ Quad view selectable
- - 7 languages OSD display
- - PAL/ NTSC optional, MIRROR/ NORMAL image optional
- - Automatically turn on when the reversing gear is engaged
- - Trigger priority: CAM 1> CAM 2> CAM 3> CAM 4
- - With high- Low voltage protection and short circuit protection
Specification:
(1)7 inch TFT LCD monitor , 16: 9
(2)Wide view angle(CR> 10): (up/ Down/ Left/ Right): 40/ 40/ 60/ 60 Degrees
(3)Resolution: 400 R. G. B x234 dots
(4)Color system: PAL/ NTSC(selectable)
(5)Power requirement: 12/ 24V DC
(6)Power consumption: Less than 5W
(7)Operating temperature: - 20 to +70 C- Degree
(8)Storage temperature: - 30 to +80 C- Degree
(9)Dimension: 183 (L) x 125 (W) x 38 (D)
CAMERA:
- - 4Pin DIN waterproof screw on connector
- - Standard rear view camera
- - The automatic day/ Night sensor and infrared LEDs to provide clear image in dull condition
SPECIFICATIONS:
(1)1/ 4" Sharp Color CCD sensor
(2)TV system : PAL/ NTSC
(3)Resolution: 420 TV lines
(4)With 18 IR LED light , Night vision distance up to 10- 15 meters
(5)Self- Sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: - 20~ +70 degrees , RH95% Max.
(9)Storage temperature: - 40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, Silver/ Black color selectable
CABLE:
- - 4 Pole Screw Locking Extension Cable
- - Design for Car Rear View Systems using in long vehicle
- - One Male connect(4 pin) and the other female connector(4 socket)
- - Color: Black
- - Length: 5m, 15m, 20m or Customized
