Voltage:5v
auto

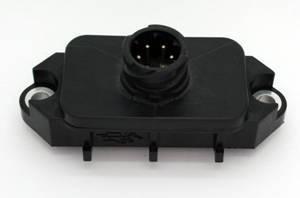

DESCRIPTIONS Model 671 incorporates MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology in the design. It is specifically designed for tough automotive application.Based on the piezo resistive principle two pressure sensor elements transform two system pressures into electrical output signals proportionally to the pressure. Model 671 is designed to perform in the underhood harsh environment such as temperature extremes, vibration, thermal and mechanical shock, and corrosive chemical. SENSOR SPECIFICATIONS Electrical: Supply Voltage5.0±0.5 VDC Supply Current15 mA dc max per sensor Output Type ratiometric Output Voltage1.0 to 4.0 V dc at 5V dc excitation Electrical connector bayonet nut connector DIN 72 585,6 pole with round contact Operating Characteristics: Range 0 to 174 psig 0 to 1.2 MPa 0 to 12 bar Proof Pressure 16 bar (20 bar pressure peak for t≤1 min) Burst Pressure 30 bar for t≤10 min Total Accuracy (-20℃≤T≤60℃) 1.5%FS max Environmental Effects: Compensated Temperature Range-40℃ to +80℃ Storage Temperature Range -40℃ to +120℃ Mechanical: Pressure Port 2 pivots φ 9.4 mm for O-ring Media Compatibility Compressed air, aqueous and saline, contaminated with technical grease and oil, solid and gaseous combustion residue of oil (sulphurous hydrocarbon), parts of antifreezer and plasticizer Protection Class IP 69 and IP 67 with plugged-in connector
