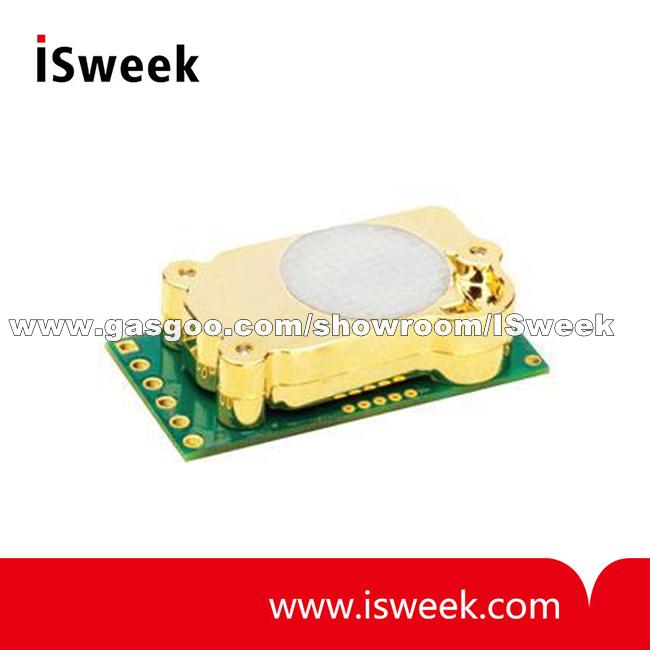

CO₂ Sensor ModuleTelaire T6713 Series
    Telaire T6713 Series is ideal for applications where Carbon DioxideCO₂levels need to be measured and controlled for indoor air quality and energy saving applications, such as demand control ventilation.
    All units are factory-calibrated to measure CO₂ concentration levels up to 5000 ppm.

CO₂ Sensor ModuleTelaire T6713 SeriesFeatures

• An affordable gas sensing solution for OEMs.
• Eliminates the need for calibration in most applications with Telaire's patented ABC Logic^TM software. Lifetime calibration warranty.
• A reliable sensor design based on 20 years of engineering and manufacturing expertise.
• Flexible CO₂ sensor platform designed to interact with other microprocessor devices.
• Small compact design allowing simpleproduct integration.


CO₂ Sensor ModuleTelaire T6713 SeriesSpecifications

Method		Non Dispersive Infrared (NDIR), gold plated optics, diffusion sampling (with Telaire's Patented ABC Logic Self Calibrated Algorithm)
Measurement Range2		0 to 5000 ppm
Dimensions		1.18 in X 0.61 in X 0.34 in (30 mm X 15.6 mm X 8.6 mm)
Accuracy15		400-5000 ppm+/-30ppm±3% of reading 400-2000 ppm+/-25 ppm±3% of reading
Temperature Dependence		5 ppm per or 0.5% of the reading per, whichever is greater
Stability		< 2% of FS over life of sensor (15 years typical)
Pressure Dependence		0.13% of reading per mm Hg
Calibration Interval		Not required
Response Time		< 3 minutes for 90% step change typical
Signal Update		Every 5 seconds
Warm Up Time		< 2 minutes (operational)  10 minutes (maximum accuracy)
Operating Conditions		14°F to 140°F (-10 to 60)  0 to 95% RH, non-condensing
Storage Conditions		-22°F to 158°F (-30 to 70)
Output	Digital3	I2C slave up to 100kHz UART@ 19200 Baud w/Modbus support
	PWM Output Mode	Two options:  Cycle period 1002 ms(-1Hz)  40 us (25kHz)
	Power Supply Requirements4	4.5-5.5 VDC  Peak200mA155mAtypical  Average 25mA20mAtypical
	Interface Connections	Designed for six (6) pin male header with 0.1 in2.54 mmspacing.Header not included.

Notes

(1) Tolerance based on span gas of ±2%,whichadds to the uncertainty, tested at Standard Ambient Temperature and Pressure (SATP).
(2) Subjecting sensors to environments less than 400 ppm for more than 15 minutes may affect accuracy due to ABC Logic algorithm.
(3) Please call for detailed product specifications.
(4) Based on nominal 5VDC input voltage. For best performance, DC supply should be a regulated, low noise power source.
(5) The module may exhibit a toleranceaddition of ±6Oppm when first installed. This wil be corrected by the ABC Logic in first weeks of operation.
