NDIR CO2 Sensor Module

Product Attribute:

Applicationt:

-

Production Description:

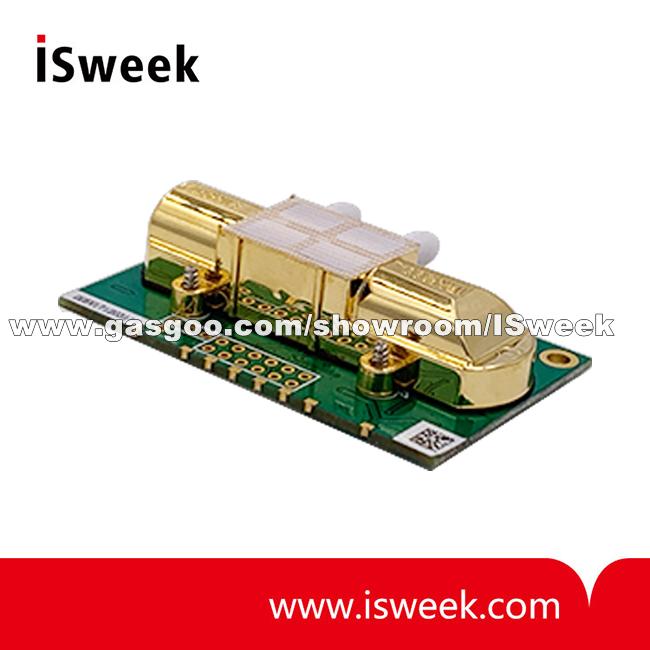

NDIR CO2 Sensor Module IRM300 Product Description:
    IRM300 is a general infrared CO2 sensor module formed using the NDIR infrared absorption detection principle.

Performance Characteristics:

Output Mode	UART, PWM, IIC
	Analog (0 ~ 4 V)
No. of Channel	Dual
Dimension	57 mm x 35 mm x 16 mm
Applicaiton	HVAC, Air Quality, Instruments And Apparatuses

Environmental

Storage Temperature	-40 ~ 70
Working Temperature	0 ~ 50
Working Humidity	0% ~ 95%RH non-condensing

Technical Data

Description	Parameter	Unit
Detection Range	0 ~ 50,000 (customizable)	ppm
Detection Accuracy	±50 ppm ± 5% reading (customizable)	/
Response Time (T90)	diffusing: 60	seconds
	pumping: 10	seconds
Warm-Up Time	Twarm: 120	seconds
Working Voltage	5 ± 0.5	V
Working Current	Imax: 130	mA

Product Dimensions

All dimensions in mm
All tolerances ±0.20mm unless otherwise stated
