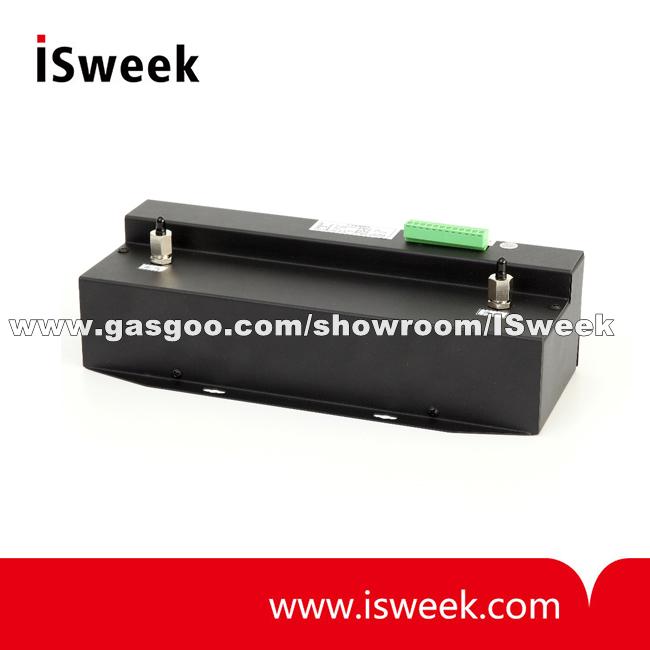

Infrared Gas Sensor

Product Attribute:

Applicationt:

-

Production Description:

RL-W150 Infrared Gas Sensor Applications:
    It is widely used in air separation industry, cement and metallurgical industry gas analysis, greenhouse and scientific laboratory gas analysis, chemical fertilizer chemical industry and other industrial processes in gas analysis, flue gas composition gas analysis, environmental detection, medical monitoring, coal chemical gas monitoring, automobile exhaust analysis and so on.

RL-W150 Infrared Gas Sensor Features:

•  Compact structure, easy to install;
•  Adopt PID temperature control technology insulation;
•  The design of imported light source and dual-channel detector has the characteristics of long life, high precision, fast response and good stability;
•  Mass production, low price;
•  Stainless steel gold-plated tube, corrosion resistance;
•  Dual path design, higher resolution


RL-W150 Infrared Gas Sensor Technical parameters:
Measuring principle: NDIR( non-splitting principle
Measurement components and ranges:

Gas component	model number	measuring range	remarks
CO2	RL-W150CO2	0~10/100/500PPm	Range optional
CO	RL-W150CO	0~100/1000PPm	Range optional
CH4	RL-W150CH4	0~300/1000PPm	Range optional
C3H8	RL-W150C3H8	0~300/1000PPm	Range optional
SF6	RL-W150SF6	0~200/2000PPm	Range optional
NH3	RL-W150NH3	0~100/1000PPm	Range optional
SO2	RL-W150SO2	0~500/2000PPm	Range optional
NOX	RL-W150NOX	0~500/2000PPm	Range optional

Resolution :0.1 PPm( based on the range of measurements);
Precision: FS;±2 percent
Stability: Zero drift ± FS2per cent;
             Range drift ±2 FS;
Repeatability: FS±1 per cent
Sample gas flow :200~800 ml/ min;
Response time :9010 seconds;
Working voltage :24 VDC±5;
Drive current: less than 800 mA;
Air intake mode: continuous air intake;
Sample gas temperature :0~+50;
Working environment: temperature :-10~+50;
                                Moisture :90% RH;
Preheating time :2 h;
Communication mode: digital output Modbus ASCII 3.3VDC TTL, can realize two-way communication with computer;
Analog output: isolate 4~20 mA standard signal, load resistance less than 500 Euro;
Shape size :62 mm( long)×33 mm( wide);
Service life :>5 years (under normal service conditions)
