Product Attribute:
Applicationt:
-
Production Description:

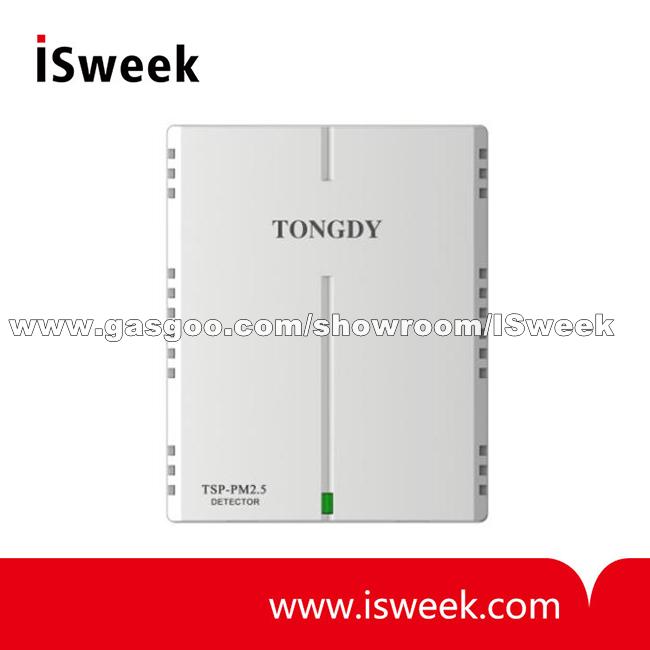

TSP-18 Indoor Air Quality Detector
—Designed for indoor air quality detection
• Experienced in designing IAQ products for 15 years, with powerful performance guaranteed
• Real-time indoor air quality detection, single or combined measurement selection: PM2.5/PM10, CO2, TVOC, Temperature and RH
• 3-color light indicates the range of the main measurement
• OLED display optional
• Suitable for schools, offices , hotels and residential projects to analyze indoor air quality, and to control ventilation systems
• Modbus RS485 or WIFI communication interface, RJ45 optional
TSP-18 Indoor Air Quality Detector Features:
• 7-24 hours online real-time IAQ detection
• Real-time output of PM2.5/PM10, CO2, TVOC and Temperature & humidity data, single or combined measurement selection
• A special correction algorithm inside to ensure the TVOC measurements not be affected as environmental change
• Modbus RS485 or WIFI interface, RJ45 optional
• 3-color lights indicates the three ranges of main measurement
• Optional OLED display IAQ measurements n
• Wall mounting with 24VAC/VDC power supply n
• Used in all old and new buildings n
• Provides carbon monoxide and ozone detectors of TSP series for more gases detection n
• Over 15 years’application experience of IAQ products in global market
TSP-18 Indoor Air Quality Detector Applications:
• Schools , hotels, offices and other public places
• Smart home systems
• Residential projects
• Air quality monitoring in other public places
• All ventilation systems
TSP-18 Indoor Air Quality Detector Specifications:
|
General Data
|
|
|
Detection Parameter
|
PM2.5/PM10CO2TVOCTemperature &Humidity
Single or multiple
|
|
Output
|
RS485 (Modbus RTU)
WIFI @2.4 GHz 802.11b/g/n
RJ45 (Ethernet TCP) optional
|
|
Operating Environment
|
Temperature-20~60 Humidity0~99%RH
|
|
Storage condition
|
-5~50 Humidity0~70%RH (No condensation)
|
|
Power supply
|
24VAC±10%, or 18~24VDC
|
|
Overall Dimension
|
94mm(L)×116.5mm(W)×36mm(H)
|
|
Material of Shell & IP Level
|
PC/ABS fire-proof material / IP30
|
|
Installation
|
Concealed installation65mm×65mm wire box
Surface mounted: provide a mounting bracket
|
|
PM2.5/PM10 Data
|
|
Sensor
|
Laser particle sensor, Light scattering method
|
|
Measuring Range
|
PM2.50~5<
|
