Fully Calibrated Temperature Sensor

Product Attribute:

Applicationt:

-

Production Description:

1.General Description

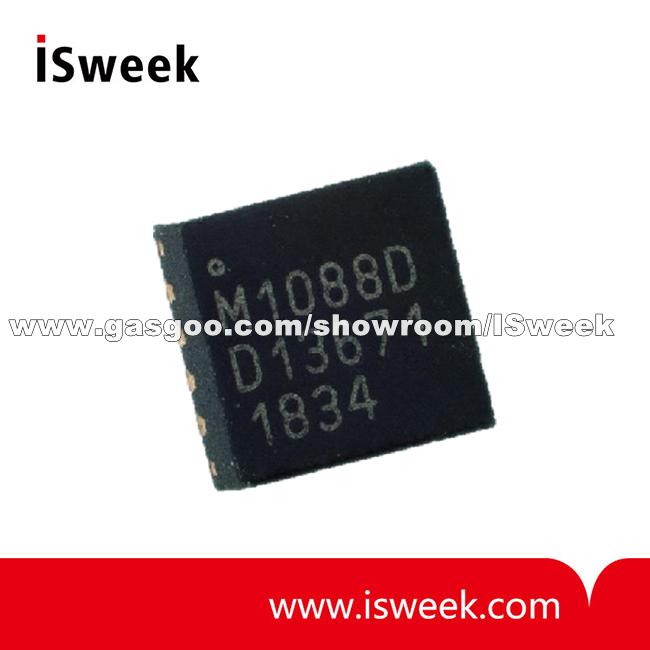

    The integrated circuit MS1088 is a fully integrated tested and calibrated digital low power temperature sensor with a typical temperature measurement accuracy of ±0.3. It offers digital SPI or I²C interface and battery end-of-life (EOL) detection. The MS1088 is available in quad flat no leads package(QFN) or chip scale package.

2.Applications

•  Wireless sensor tags
•  Human body temperature measurement
•  Wearables
•  Power-Supply temperature monitoring
•  Environmental temperature monitoring and HVAC
•  Computer peripheral thermal protection
•  Notebook computers
•  Cell phones
•  Battery management
•  Thermostat controls

•  Digital output: I²C serial 2-wire or SPI serial 4-wire
•  Up to 4 sensors can be addressed over the same serial bus (4 sub-addresses)
•  Hardware-Handshake to wake up your Microcontroller when measurement is finished.
•  Temperature measuring range : -40 to +120
•  Accuracy: typically ±0.3 from 10 to +40
•  Resolution: 0.05
•  Ultra low current in sleep mode: 20nA
•  Fast measurement time: 50 ms
•  Current in active state : 75 µA
•  Avg. current at 1 measurement per minute: 80 nA
•  Supply range: 2.2V to 3.5V
•  Battery EOL detection: threshold level programmable between 2.20V to 2.95V
•  Digital output pin for EOL detection
•  Available in QFN or CSP package
