Differential Pressure Transmitter For Oxygen Pressure Use

Product Attribute:

Applicationt:

-

Production Description:

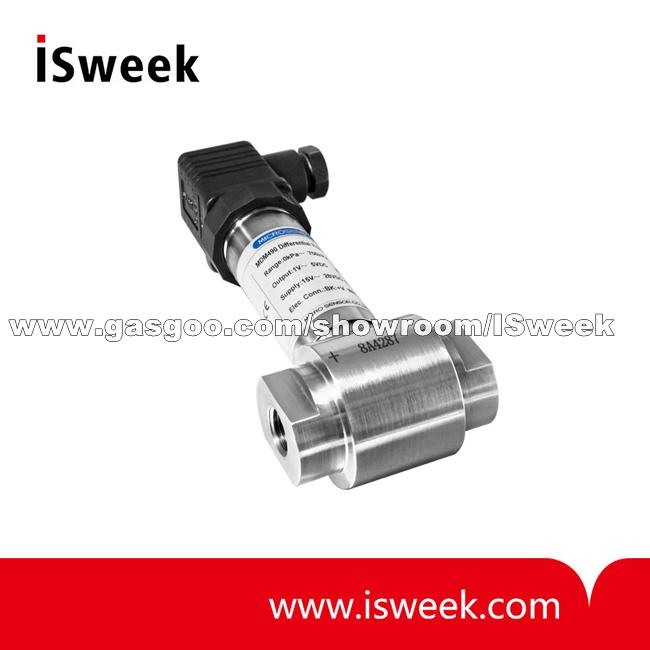

MDM490 Differential Pressure Transmitter Introduction
    MDM490 uses piezoresistive differential pressure sensor as sensing element. Silicon oil is filled in between die and two diaphragms, when measured differential pressure is added on two diaphragm, the pressure could be transferred onto die through silicon oil. Sensor die connects with amplifier circuit through wires, using semi-conductors piezoresistive effect, transforming differential pressure signal into electric signal. The whole product is used for differential pressure measurement of petroleum, chemiindustry, power station and hydrology, etc.


MDM490 Differential Pressure Transmitter Environment Condition

• Shock effect: 1% at 3gRMS, 30Hz~2000Hz
• Impact: 1% at 100g, 10ms
• Media: liquid or gas which is compatible with construction material

• Power supply: 2-wire 15V~28V DC; 3-wire 15V~28V DC
• Output signal: 2-wire 4mA~20mA DC; 3-wire 0/1V~5V DC 0mA~10/20mA DC
• Electrical connection: plug connection or 7.2mm 7-pin cable
• Response time(10%~90%): 1ms
• Insulation resistor: 100M,500V DC

• Full stainless steel construction, compact size, easy installation;
• Laser welding, full-sealed construction; protection IP65;
• Using piezoresistive differential pressure sensor, 316L isolated diaphragm;
• Temperature compensation and aging, stable performance;
• Zero and span adjustable outside;
• Ex-proof version MDM490 conforms to GB3836.4 Exia CT6 Ga standard;ex-proof certificate is approved;
• Ship-use product conforms to CCS Rules of Classification of Sea-going Steel Ships(2018); ship-use certificate is approved;
• CE and RoHS certificates.
