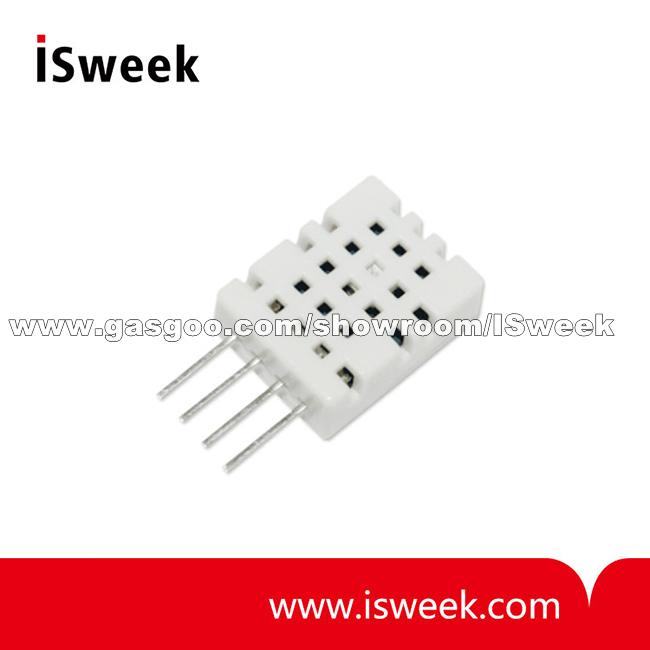

SIP Packaged Temperature And Humidity Sensor

Product Attribute:

Applicationt:

-

Production Description:

1.Technical Parameters

Typical accuracy (% RH)	±3
Operating range (% RH)	0 to 100
Humi response time(s)	8
Typical accuracy (°C)	±0.5
Operating range (°C)	-40~80
Temp response time(s)	5 to 30
Interface	I²C
Supply voltage(V)	2.5~5.5
Size:L*W*H (mm)	23.3*12.5*5.8

2. Product Overview
    DHT10 is equipped with a newly designed ASIC chip, an improved MEMS semiconductor capacitive humidity sensor and a standard on-chip temperature sensor. Its performance has greatly improved or even exceeded the reliability level of the previous generation of sensors. The new generation of temperature and humidity sensors have been improved to make their performance more stable in harsh environments. Each sensor is strictly calibrated and tested. Because of the improvement and miniaturization of the sensor, its cost-effective ratio is higher.


3. Applications Range
    HVAC system, dehumidifier,test and inspection equipment,consumer goods,automobiles,automatic control, data recorder,weather station,household appliances,humidity regulation,medical and other related temperature and humidity detection and control.


4. Product Feature

• Full calibration
• strong anti-interference ability
• Digital output, I2C interface
• Excellent long-term stability
• Quick response and strong anti-jamming capability
• Wide voltage support 2.5-5.5v DC
